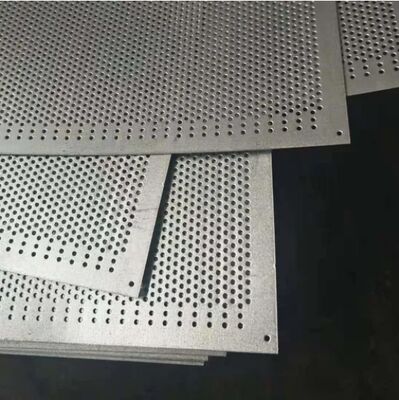

Galvanized Steel Round Hole Expanded Metal Mesh Light and Cost Efficient Perforated Metal Sheet

Large Image : Galvanized Steel Round Hole Expanded Metal Mesh Light and Cost Efficient Perforated Metal Sheet

Product Details:

Brand Name:	Gnee

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Packaging Details:	Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Delivery Time:	Shipped in 20 days after payment
Supply Ability:	300000 Square Meter/Square Meters per Month

Contact Now

Galvanized Steel Round Hole Expanded Metal Mesh Light and Cost Efficient Perforated Metal Sheet

Description

Highlight:

Galvanized Steel Expanded Metal Mesh

Round Hole Perforated Metal Sheet

Light and Cost Efficient Galvanized Steel Grating

Round Hole Galvanized Steel Grating Perforated Metal Sheet

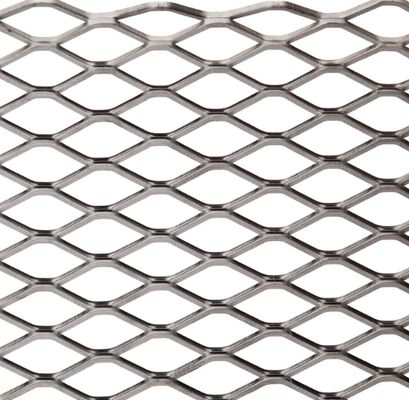

Expanded metal sheet is manufactured from metal sheet or roll through stamping and expanding processes, creating uniform diamond-shaped openings. Compared to traditional flat metal sheets, expanded metal mesh offers superior versatility and performance advantages.

The expanding process allows the metal sheet to expand up to 8 times its original width while reducing weight by up to 75% per meter, resulting in a harder, lighter, and more cost-effective material than solid metal sheets.

Key Advantages of Expanded Metal

Manufactured as a single piece without assembly or welding
Cost-effective alternative with no material loss during production
Enhanced strength with no strained joints or welds
Ideal for forming, pressing, and cutting applications
Reduced weight per meter compared to original sheet
Larger open area compared to similar products

Product Specifications

Material	Mild Steel, Pre-Galvanized Steel, Aluminum, Stainless Steel, Carbon Steel
Specifications	Stainless Steel, Hot Rolled Steel, Cold Rolled Steel, Aluminum plate
Hole Pattern	Round hole, Square hole, Slotted hole, Decorative hole, Architectural hole
Thickness	0.5mm-4mm (additional thickness available on request)
Hole Size	2mm-50mm (other hole sizes available)
Arrangement Mode	Straight row, Staggered
Margins	Finished end Pattern, Unfinished end Pattern, No Margin
Width	1m, 1.22m, 1.5m, 2m
Length	2m, 2.44m, 3m
Sheet Size	1m×2m, 1.22m×2.44m, 1.5m×3m (additional sizes available on request)
Application	Security, sifting, machinery guards, enclosures, sign panels, noise reduction
Note	Perforations must be the same or larger in size than the material thickness
