Galvanized Steel Heavy Duty Serrated Anti-slip Bar Grating for Industrial Flooring

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Serrated Anti-slip Steel Grating

Heavy Duty Bar Grating

Galvanized Steel Metal Grating

Product Description

Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Heavy Duty Bar Grating

Steel Grating is a sturdy, open-grid assembly of metal bars, primarily used for floorings, walkways, platforms, and other load-bearing applications. It is widely employed in industrial environments due to its high strength, durability, and ability to allow light, air, and fluids to pass through.

Product Features

Durability: Constructed from high-quality carbon or stainless steel, ensuring long-lasting performance in demanding environments.

Load-Bearing Capacity: Engineered to support heavy loads, making it ideal for industrial applications such as factories and warehouses.

Slip-Resistant Surface: Features a textured surface that enhances safety by reducing the risk of slips and falls.

Customizable Sizes: Available in various sizes and spacing options to meet specific project requirements and applications.

Optimal Drainage: Open design allows for effective water drainage and air circulation, reducing the risk of pooling and enhancing hygiene.

Technical Specifications

Material	Carbon Steel Q235 / Stainless Steel 304 / 316
Type	Press locked / Flat bar / Serrated bar / I Bar
Bearing Bar Size	20 x 3 to 100 x 9; I-section specifications: 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
Bearing Bar Pitch	12.5 to 100 mm (30, 40, 60mm recommended, American standard available)
Cross Bar Pitch	18.5 to 101.6 mm (50, 100mm recommended, American standard available)
Specification	Bearing flat steel: 25x3mm / Center space: 30mm, 40mm, 50mm, 100mm Horizontal pole: 10x2mm / Center space: 50mm, 100mm
Surface Treatment	Untreated / Painting / Hot Dip Galvanizing
Steel Standard	China GB700-88 / America ASTM (A36) / Britain ASTM (A36)
HDG Standard	China GB/T13912-92 / America ASTM (A123) / Britain BS729
Quality Standard	China YB/T4001-1998 / America ANSI/NAAMM (MBG531-88) / Britain BS4592-1987 / Australia AS1657-1992

Product Images

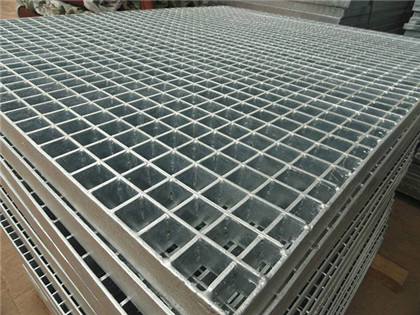

Galvanized steel grating installation showing anti-slip surface and structural integrity

Close-up view of serrated bar steel grating with detailed surface texture

Industrial application of heavy duty steel grating in flooring and walkway systems

Product Summary

Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Heavy Duty Bar Grating Steel Grating is a sturdy, open-grid assembly of metal bars, primarily used for floorings, walkways, platforms, and other load-bearing applications. It is widely employed in industrial environments due to its high ...
