Hot DIP Galvanized Plain Type or Serrated Type Steel Grating with CE Approval for Industrial Flooring and Mezzanines
Brand Name:Gnee
Minimum Order Quantity:2PCS
Supply Ability:300000 Square Meter/Square Meters per Month
Tags:
Product Details
Highlight:
Hot DIP Galvanized Steel Grating
,Plain Type or Serrated Type Bar Grating
,CE Approval Metal Grating
Product Description
Hot Dip Galvanized Steel Grating
Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed for industrial applications. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars, creating a structure that supports heavy loads with minimal weight. This product is available in both plain and serrated types with CE approval.
Product Specifications
Standard Configurations
| Item No. | Bearing Bar Pitch | Cross Bar Pitch | Bearing Bar Specification (Width*Thickness) |
|---|---|---|---|
| 1 | 30 | 100 | JG203/30/100 | JG253/30/100 | JG323/30/100 | JG403/30/100 | JG205/30/100 | JG255/30/100 |
| 50 | JG203/30/50 | JG253/30/50 | JG323/30/50 | JG403/30/50 | JG205/30/50 | JG255/30/50 | ||
| 2 | 40 | 100 | JG203/40/100 | JG253/40/100 | JG323/40/100 | JG403/40/100 | JG205/40/100 | JG255/40/100 |
| 50 | JG203/40/50 | JG253/40/50 | JG323/40/50 | JG403/40/50 | JG205/40/50 | JG255/40/50 | ||
| 3 | 60 | 50 | JG203/60/50 | JG253/60/50 | JG323/60/50 | JG403/60/50 | JG205/60/50 | JG255/60/50 |
International Standards
- China: YB/T4001-1998
- USA: ANSI/NAAMM (MBG531-88)
- UK: BS4592-1987
- Australia: AS1657-1985
- Japan: JIS
Material Options
Q235, A36, SS304
Bearing Bar Specifications
- Plain & Serrated Type: 20x3 to 100x3mm
- I-Section Type: (25,32,38,40,50)x5x3; (50,55,60,65,70,75)x7x4, etc.
Surface Treatment
Untreated, painting, or hot dip galvanizing
Grating Types
- Plain style steel grating
- Serrated style steel grating
- I-bar type steel grating
Application Fields
- Steel structure platforms
- Stair treads and sidewalks
- Drainage systems
- Well covers

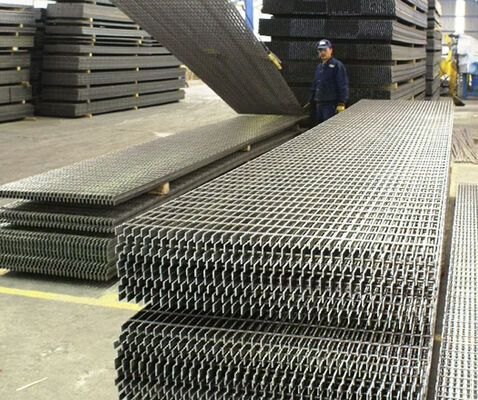

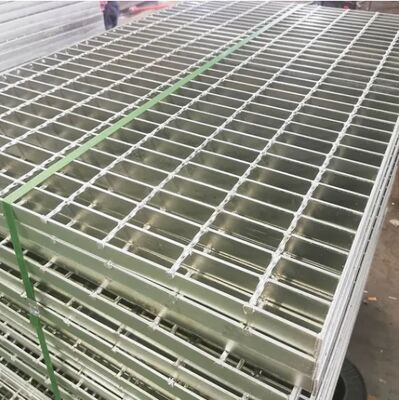

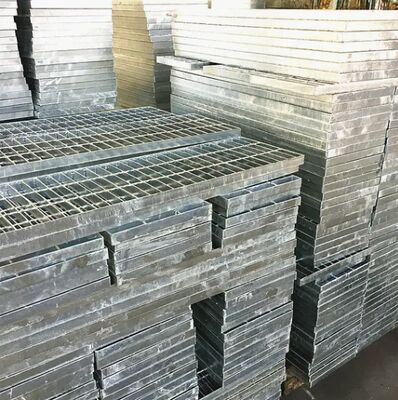

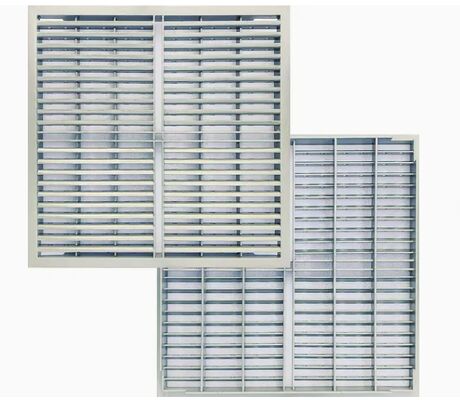

Product Images
Product Summary
Hot Dip Galvanized Steel Grating Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed for industrial applications. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars, creating a structure that ...
