Custom Size Hot Dip Galvanized Steel Grating Serrated Style Metal Bar Grating for Industrial Use

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Custom Size Galvanized Steel Grating

Hot Dip Galvanized Metal Bar Grating

Serrated Style Steel Grating

Product Description

Custom Size Catwalk M.S. Galvanized Metal Steel Bar Grating

Hot-dip galvanized steel grating is available in three main styles: Plain Style Steel Grating, Serrated Style Steel Grating, and I-Bar Type Steel Grating. These durable grating solutions are widely used in steel structure platforms, stair treads, sidewalks, drainage systems, and well covers. We offer both standard steel grating designs and custom manufacturing to meet specific client requirements.

Our galvanized steel grating typically uses A36 grade steel as standard. After the welding process is completed, surface treatments including hot-dip galvanizing or painting are applied to enhance both aesthetic appearance and corrosion resistance.

Product Specifications

No.	Item	Detailed Description
1	Bearing Bar	Metric Sizes: 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm etc. I-Bar Sizes: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. US Standard: 1" x 3/16", 1 1/4" x 3/16", 1 1/2" x 3/16", 1" x 1/4", 1 1/4" x 1/4", 1 1/2" x 1/4", 1" x 1/8", 1 1/4" x 1/8", 1 1/2" x 1/8" etc.
2	Bearing Bar Pitch	Metric: 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US Standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc.
4	Steel Grade	ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel etc.
5	Surface Treatment	Black, self color, hot-dip galvanized, painted, spray coating
6	Grating Style	Plain/Smooth, Serrated/Teeth, I-Bar, Serrated I-Bar
7	Grating Standard	China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985 Japan: JIS

Product Gallery

Hot-dip galvanized steel grating installation in industrial setting

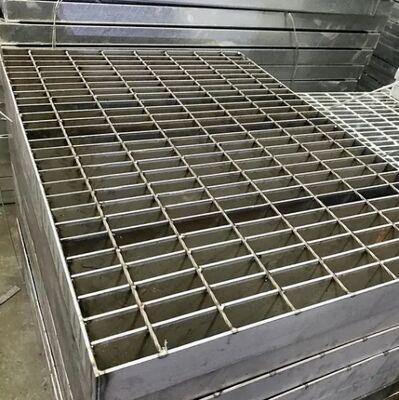

Close-up view of serrated steel grating surface texture

Steel grating application as catwalk in factory environment

Product Summary

Custom Size Catwalk M.S. Galvanized Metal Steel Bar Grating Hot-dip galvanized steel grating is available in three main styles: Plain Style Steel Grating, Serrated Style Steel Grating, and I-Bar Type Steel Grating. These durable grating solutions are widely used in steel structure platforms, stair ...
