Heavy Duty Galvanized Steel Grating for Industrial Walkways and Trench Covers

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Heavy Duty Steel Grating

Galvanized Bar Grating

Industrial Walkways Metal Grating

Product Description

Heavy Duty Metal Trench Drain Cover Floor Grate

Industrial Walkways Steel Mesh Grid Tooth Welded Galvanized Bar Grating

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars or by bent connecting bars extending between them. This design is engineered to support heavy loads with minimal weight.

Steel grating is widely used for floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.

Materials of Steel Metal Grating

Bearing Bar Materials

Low Carbon Steel Smooth Flat Bars
Low Carbon Steel Serrated Bars
Low Carbon I-Shaped Steel Bars

Cross Bar Materials

Steel Twisted Square Cross Bars
Steel Round Cross Bars

Stainless Steel Options

Stainless Steel 304 Grade Flat Bars
Stainless Steel 316 Grade Flat Bars

Popular Specifications of Steel Metal Grating

Item	Specifications of Bearing Bar (mm)	Diameter of Cross Bar (mm)	Pitch of Bearing Bar (mm)	Pitch of Cross Bar (mm)
SG253	25x3	6	20,30,40,50	50,100
SG254	25x4	6,8	20,30,40,50	50,100
SG255	25x5	6,8	20,30,40,50	50,100
SG304	30x4	8	20,30,40,50	50,100
SG305	30x5	8	20,30,40,50	50,100
SG355	35x5	8	20,30,40,50	50,100
SG404	40x4	8	20,30,40,50	50,100
SG405	40x5	8	20,30,40,50	50,100
SG455	45x5	8	20,30,40,50	50,100
SG505	50x5	8	20,30,40,50	50,100
SG605	60x5	8	30,40,50,60	50,100
SG705	70x5	8	30,40,50,60	50,100

Product Images

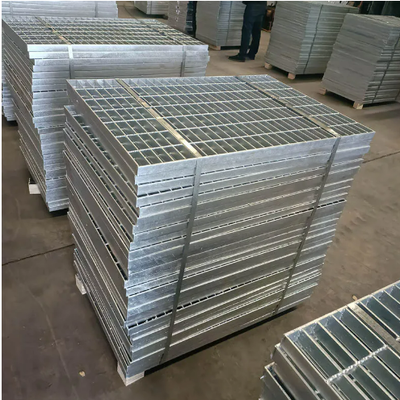

Heavy duty steel grating installation in industrial setting

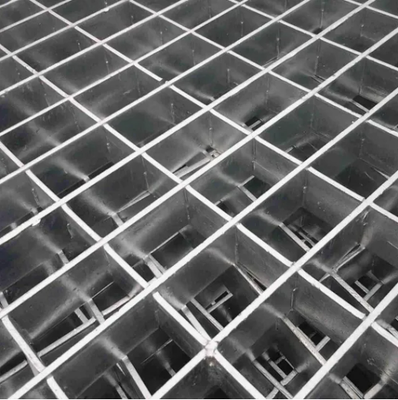

Close-up view of welded steel bar grating structure

Steel grating used as trench drain cover and walkway surface

Product Summary

Heavy Duty Metal Trench Drain Cover Floor Grate Industrial Walkways Steel Mesh Grid Tooth Welded Galvanized Bar Grating Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to ...
