Outdoor Hot DIP Galvanized Steel Bar Grating with Anti-Slip Performance for Flooring
Brand Name:Gnee
Minimum Order Quantity:2PCS
Supply Ability:300000 Square Meter/Square Meters per Month
Tags:
Product Details
Highlight:
Hot DIP Galvanized Steel Bar Grating
,Outdoor Use Metal Grating
,Anti-Slip Performance Galvanized Steel Grating
Product Description
Outdoor Galvanized Steel Grating - Hot DIP Galvanized Steel Bar Grating for Floor
Steel gratings are widely used in industrial projects worldwide, offering superior performance particularly in mining applications and various industrial settings.
Key Advantages
- Material Efficiency: Requires less steel under identical load conditions while reducing support structure requirements
- Modern Design: Features attractive appearance with standardized specifications, providing ventilation, light transmission, and a contemporary aesthetic
- Cost Savings: Reduces material, labor, and maintenance expenses with minimal cleaning requirements
- Quick Installation: Pre-fabricated design eliminates on-site processing, enabling rapid deployment
- Self-Cleaning Design: Grid structure prevents accumulation of dirt, rain, ice, and dust
- Performance Features: Excellent ventilation, lighting, heat dissipation, explosion-proof, and anti-slip properties
Technical Specifications
| Bearing Bar Height (mm) | Bearing Bar Thickness (mm) | Cross Bar Size (mm) | Bearing Bar Pitch (mm) | Cross Bar Pitch (mm) |
|---|---|---|---|---|
| 150 | 8 | 8×8 | 40 | 100 |
| 130 | 8 | 8×8 | 40 | 100 |
| 120 | 8 | 8×8 | 40 | 100 |
| 100 | 8 | 8×8 | 40 | 100 |
| 90 | 8 | 8×8 | 40 | 100 |
| 80 | 8 | 8×8 | 40 | 100 |
| 75 | 6 | 8×8 | 40 | 100 |
| 70 | 7 | 8×8 | 40 | 100 |
Application Areas
Stainless Steel Grating: Widely used in power plants, water treatment facilities, municipal engineering projects, theater platforms, observation decks, parking lots, and industrial walkways. Features simple installation, excellent ventilation, lighting, heat dissipation, explosion-proof and anti-slip performance, with high strength and minimal maintenance requirements.
Platform Steel Grating: Ideal for chemical plant operating platforms, providing corrosion resistance without painting requirements, eliminating containment needs, and ensuring long service life.

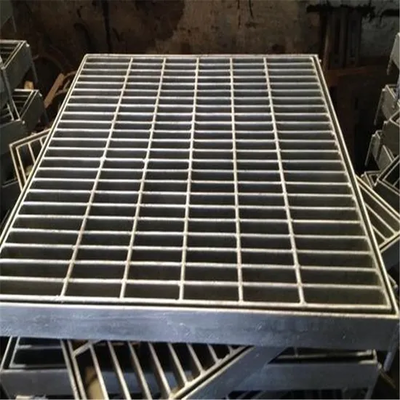

Product Images
Product Summary
Outdoor Galvanized Steel Grating - Hot DIP Galvanized Steel Bar Grating for Floor Steel gratings are widely used in industrial projects worldwide, offering superior performance particularly in mining applications and various industrial settings. Key Advantages Material Efficiency: Requires less ...
