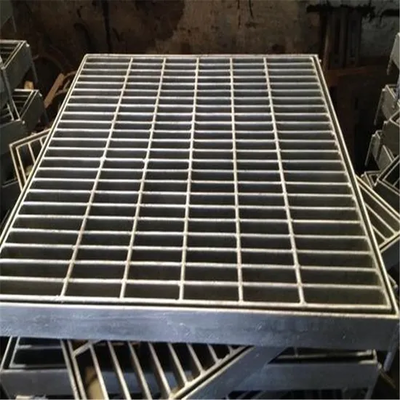

Hot-DIP Galvanized Carbon Steel Grating - Durable Outdoor Metal Grating for Heavy Loads

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Hot-DIP Galvanized Steel Grating

Carbon Steel Metal Grating

Durable Outdoor Bar Grating

Product Description

Hot-DIP Galvanized Carbon Steel Grating Drainage Cover

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars or by bent connecting bars extending between them. This design is intended to hold heavy loads with minimal weight. Steel grating is widely used for floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.

Applications

Stainless Steel Grating: Widely used in power plants, water plants, municipal engineering, theaters, viewing platforms, and parking lots. Features simple installation, excellent ventilation, lighting, heat dissipation, anti-slip performance, high strength, lightweight construction, and minimal maintenance.
Platform Steel Grating: Ideal for chemical plant operating platforms due to corrosion resistance, paint-free surface, no containment requirements, and long service life.
Drainage Cover Steel Grating: Perfect for parking lots, car wash facilities, city roads, squares, docks, and airports. Features 83.3% open area for water drainage, hot-dip galvanized coating for rust and corrosion resistance, and maintenance-free operation.
Insert Grating: Versatile solution for civil and commercial buildings, theaters, subways, and municipal projects. Can be used for ceilings, decorations, platforms, ventilation windows, and various covers. Features strong weld points, uniform spacing, flat surface, lightweight design, high strength, and corrosion resistance.

Technical Specifications

Bearing Bar Height (mm)	Bearing Bar Thickness (mm)	Cross Bar Size (mm)	Bearing Bar Pitch (mm)	Cross Bar Pitch (mm)
150	8	8×8	40	100
130	8	8×8	40	100
120	8	8×8	40	100
100	8	8×8	40	100
90	8	8×8	40	100
80	8	8×8	40	100
75	6	8×8	40	100
70	7	8×8	40	100

Product Gallery

Hot-dip galvanized steel grating installation example

Steel grating close-up showing grid pattern and construction

Industrial application of steel grating as drainage cover

Product Summary

Hot-DIP Galvanized Carbon Steel Grating Drainage Cover Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars or by bent connecting bars extending between ...
