Customized 32X5mm Hot DIP Galvanized Steel Grating for Outdoor Use

Brand Name:Gnee
Minimum Order Quantity:2PCS
Supply Ability:300000 Square Meter/Square Meters per Month
Product Details
Highlight:

32X5mm Galvanized Steel Grating

,

Hot DIP Galvanized Steel Grating

,

Outdoor Use Steel Grating
Product Description
Customized 32×5mm Hot DIP Galvanized Steel Grating for Outdoor Use
Steel bar grating is engineered for exceptional strength and durability, manufactured from premium materials including carbon steel, aluminum, or stainless steel. Available in multiple production types—welded bar, press-locked, swage-locked, and riveted grating—with both smooth and serrated surface options for optimal safety and performance.
Versatile Applications
  • Stair treads and walkways
  • Industrial platforms and flooring
  • Trench covers and drainage systems
  • Wheeled equipment pathways
  • Security screens and barriers
  • Heavy-duty construction projects
Product Specifications
Product Name Customized Anti-slip Serrated Steel Grating
Material Options Mild Steel (Low Carbon Steel), S235, S275JR, A36, or Stainless Steel SS304, SS316
Surface Treatment Hot dipped galvanized, polished or untreated
Grate Size Customized to customer requirements
Bearing Bar Dimensions 25×3, 25×4, 30×3, 30×4, 30×5, 32×5, 40×5, 50×5,...75×10mm
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm
US Standard Sizes 1"×3/16", 1¼"×3/16", 1½"×3/16", 1"×¼", 1¼"×¼", 1½"×¼"
Cross Bar Pitch 38, 50, 76, 100, 101.6mm or custom
Standard Grating Specifications
Bearing Bar Pitch Cross-bar Pitch Bearing Bar Specifications
30 100 G203/30/100, G253/30/100, G323/30/100, G403/30/100, G205/30/100, G255/30/100
50 G203/30/50, G253/30/50, G323/30/50, G403/30/50, G205/30/50, G255/30/50
40 100 G203/40/100, G253/40/100, G323/40/100, G403/40/100, G205/40/100, G255/40/100
50 G203/40/50, G253/40/50, G323/40/50, G403/40/50, G205/40/50, G255/40/50
60 50 G253/60/50, G403/60/50, G205/60/50, G255/60/50
Bearing Bar Pitch Cross-bar Pitch Bearing Bar Specifications
30 100 G325/30/100, G405/30/100, G455/30/100, G505/30/100, G555/30/100, G605/30/100
50 G325/30/50, G405/30/50, G455/30/50, G505/30/50, G555/30/50, G605/30/50
40 100 G325/40/100, G405/40/100, G455/40/100, G505/40/100, G555/40/100, G605/40/100
50 G325/40/50, G405/40/50, G455/40/50, G505/40/50, G555/40/50, G605/40/50
60 50 G325/60/50, G405/60/50, G455/60/50, G505/60/50, G555/60/50, G605/60/50
Product Images

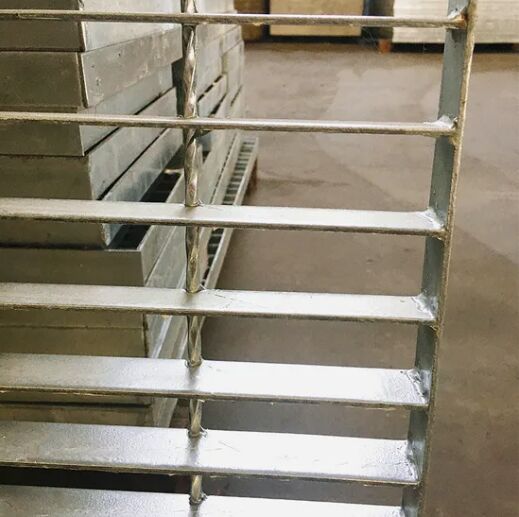

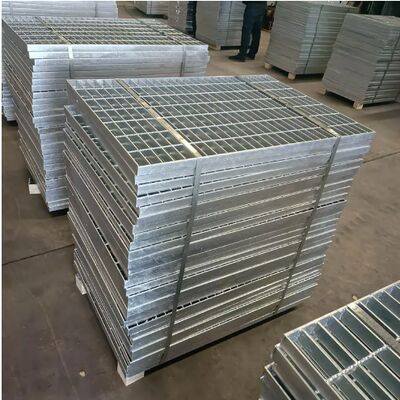

Hot dip galvanized steel grating close-up showing anti-slip serrated surface Steel grating installation example in industrial walkway application Custom steel grating panel with detailed bearing bar and cross bar structure
Product Summary

Customized 32×5mm Hot DIP Galvanized Steel Grating for Outdoor Use Steel bar grating is engineered for exceptional strength and durability, manufactured from premium materials including carbon steel, aluminum, or stainless steel. Available in multiple production types—welded bar, press-locked, swage...
