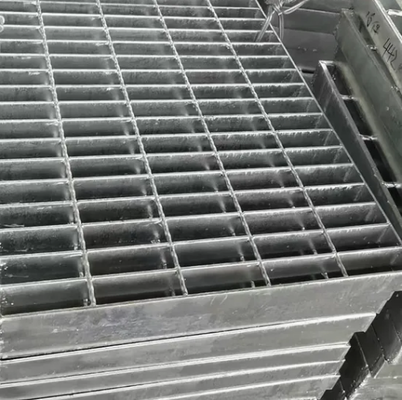

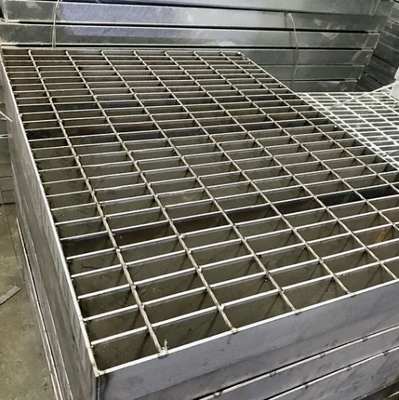

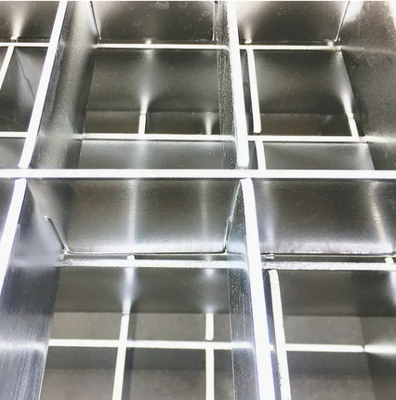

Galvanized Steel Grating with 15-60mm Bearing Bar Pitch and Perforated Drain Design for Optimal Airflow

Galvanized Steel Grating with 15-60mm Bearing Bar Pitch and Perforated Drain Design for Optimal Airflow
Galvanized Steel Grating with 15-60mm Bearing Bar Pitch and Perforated Drain Design for Optimal Airflow Galvanized Steel Grating with 15-60mm Bearing Bar Pitch and Perforated Drain Design for Optimal Airflow Galvanized Steel Grating with 15-60mm Bearing Bar Pitch and Perforated Drain Design for Optimal Airflow

Large Image :  Galvanized Steel Grating with 15-60mm Bearing Bar Pitch and Perforated Drain Design for Optimal Airflow

Product Details:
Brand Name: Gnee
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Packaging Details: Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Delivery Time: Shipped in 20 days after payment
Supply Ability: 300000 Square Meter/Square Meters per Month
Contact Now

Galvanized Steel Grating with 15-60mm Bearing Bar Pitch and Perforated Drain Design for Optimal Airflow

Description
Highlight:

15-60mm Bearing Bar Pitch Steel Grating

,

Perforated Drain Design Bar Grating

,

Hot Dip Galvanized Metal Grating

Galvanized 15/20/30/34.3/40/60mm Bearing Bar Pitch Drain Perforated Steel Grating
Steel grating, also known as steel grid or bar grating, is a versatile and robust flooring solution designed for industrial, commercial, and architectural applications. Made from high-quality carbon or stainless steel, our steel grating features a lightweight yet durable design that ensures excellent load-bearing capacity and long-lasting performance.
Key Features
  • Slip-resistant surface for enhanced safety
  • Customizable sizes and spacing options
  • Open design for optimal drainage and air circulation
  • Ideal for factories, walkways, and drainage covers
  • Meets international safety standards
  • Easy installation and maintenance
Technical Specifications
Material Carbon Steel Q235 / Stainless Steel 304 / 316
Type Press locked / Flat bar / Serrated bar / I Bar
Bearing Bar Size 20 x 3 to 100 x 9 mm; I-section specifications: 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
Bearing Bar Pitch 12.5 to 100 mm (30, 40, 60mm recommended; America standard available)
Cross Bar Pitch 18.5 to 101.6 mm (50, 100mm recommended; America standard available)
Surface Treatment Untreated / Painting / Hot Dip Galvanizing
Steel Standard China GB700-88 / America ASTM (A36) / Britain ASTM (A36)
HDG Standard China GB/T13912-92 / America ASTM (A123) / Britain BS729
Quality Standard China YB/T4001-1998 / America ANSI/NAAMM (MBG531-88) / Britain BS4592-1987 / Australia AS1657-1992
Bearing Bar Pitch Specifications
No. Bearing Bar Pitch (mm) Standard Panel Width (Bearing Bar Thickness 5mm) Bearing Bar Number (PC) Remark
1 12.5 1005 81 Pitch between the two sides are smaller than normal bearing bar pitch
2 15 1010 68
3 20 1010 51
4 22 995 46
5 23.85 1007 43
6 25 1005 41
7 30 995 34
8 30.16 1000 34
9 30.3 1005 34
10 32.5 1013 32
11 34.3 1000 30
12 35 1020 30
13 35.3 1029 30
14 40 1005 26
15 41 1030 26
16 41.4 999 25
17 50 1005 21
18 60 965 17
19 62 997 17
Galvanized Steel Grating with 15-60mm Bearing Bar Pitch and Perforated Drain Design for Optimal Airflow 0 Galvanized Steel Grating with 15-60mm Bearing Bar Pitch and Perforated Drain Design for Optimal Airflow 1
