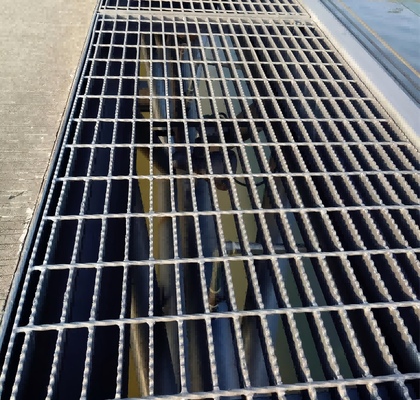

Hot-Dip Galvanized Steel Grating with High Strength and Light Structure for Robust Floor Protection
Brand Name:Gnee
Minimum Order Quantity:2PCS
Supply Ability:300000 Square Meter/Square Meters per Month
Tags:
Product Details
Highlight:
Hot-Dip Galvanized Steel Grating
,High Strength Metal Grating
,Light Structure Bar Grating
Product Description
Solid Steel Grating Bars and Plates for Robust Floor Protection
What is Steel Grating?
Steel grating is manufactured by arranging bearing bars and cross bars in a flat-steel weft pattern. The components are welded together on high-pressure resistance welders and processed through cutting, incision, opening, and overlock operations to meet specific customer requirements.
Product Advantages
- High strength construction with lightweight structure
- Exceptional load-bearing capacity
- Convenient loading and installation
- Hot-dip galvanized coating for superior corrosion resistance
Applications
Due to its excellent cost-performance ratio, hot-dip galvanized steel grating is widely used in construction projects for paved ditch roads on both new and existing roadbeds. The hot-dip galvanized surface treatment provides stable chemical and physical properties, making the product resistant to corrosion and oxidation from air and microorganisms while significantly enhancing trench load capacity.
Steel Grating Specifications
| Material Standard | Bearing Bar | Cross Bar | Bearing Bar Pitch | Cross Bar Pitch |
|---|---|---|---|---|
| Q235 | 25mm×3mm | 5mm | 20mm | 50mm |
| 25mm×5mm | 21mm | |||
| 30mm×3mm | 27mm | |||
| Q345 | 30mm×5mm | 6mm | 30mm | 50mm |
| 32mm×3mm | ||||
| 32mm×5mm | ||||
| ASTM A36 | 35mm×5mm | 6mm | 31mm | 100mm |
| 40mm×3mm | 31mm | |||
| 40mm×5mm | 31mm | |||
| ASTM A1011 | 50mm×5mm | 8mm | 32mm | 50mm |
| 60mm×5mm | ||||
| 60mm×8mm | ||||
| Ss400 | 75mm×5mm | 8mm | 40mm | 50mm |
| 75mm×8mm |
Product Images
Product Summary
Solid Steel Grating Bars and Plates for Robust Floor Protection What is Steel Grating? Steel grating is manufactured by arranging bearing bars and cross bars in a flat-steel weft pattern. The components are welded together on high-pressure resistance welders and processed through cutting, incision, ...
