Welded Serrated Steel Grating with Hot DIP Galvanizing and Carbon Steel Structure

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Hot DIP Galvanizing Steel Grating

Welded Serrated Steel Grating

Carbon Steel Bar Grating

Product Description

Welded Serrated Plain Bar Carbon Hot DIP Galvanizing Steel Structure Grating

Steel grating, also known as steel grid or bar grating, is a versatile and robust flooring solution designed for industrial, commercial, and architectural applications. Made from high-quality carbon or stainless steel, our steel grating features a lightweight yet durable design that ensures excellent load-bearing capacity and long-lasting performance.

The products are widely used in areas such as oil and petrochemical industry, power and steel plant, port, shipyard, water and sewage treatment, municipal construction, ceiling, and other industrial applications.

Technical Specifications

Material	Low carbon steel, stainless steel or following customer requirements
Bearing Bar Specifications	20 x 3 to 100 x 10; 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4mm, or customized
Bearing Bar Pitch	12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, or customized
Cross Bar Pitch	38, 50, 76, 100, 101.6mm etc, or customized
Surface Treatment	Nature, hot dip galvanizing, paint spraying or following customer requirements
Features	Anti-rust, durable, strong, safe, easy installation
Packing	Wrapped with film and straps, wooden pallet packing
Meeting Standards	China: YB/T4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985

Bearing Bar Pitch Specifications

No.	Bearing Bar Pitch (mm)	Standard Panel Width (Bearing Bar Thickness 5mm)	Bearing Bar Number (PC)	Remark
1	12.5	1005	81	Pitch between the two sides are smaller than normal bearing bar pitch
2	15	1010	68
3	20	1010	51
4	22	995	46
5	23.85	1007	43
6	25	1005	41
7	30	995	34
8	30.16	1000	34
9	30.3	1005	34
10	32.5	1013	32
11	34.3	1000	30
12	35	1020	30
13	35.3	1029	30
14	40	1005	26
15	41	1030	26
16	41.4	999	25
17	50	1005	21
18	60	965	17
19	62	997	17

Product Images

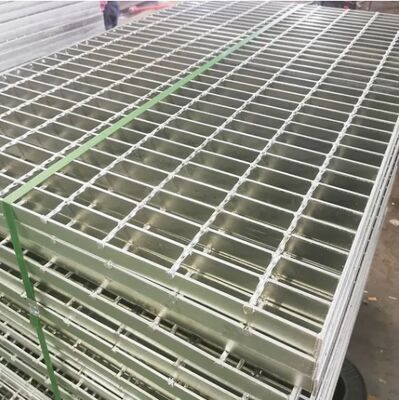

Hot dip galvanized steel grating product view showing serrated surface and structural design

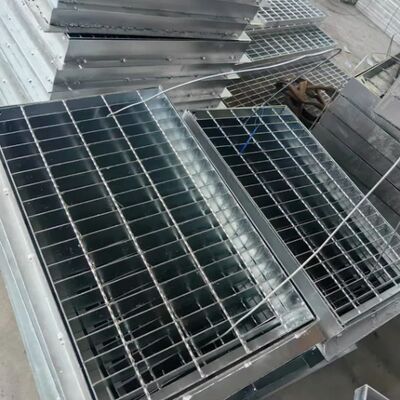

Close-up view of welded serrated plain bar carbon steel grating structure

Product Summary

Welded Serrated Plain Bar Carbon Hot DIP Galvanizing Steel Structure Grating Steel grating, also known as steel grid or bar grating, is a versatile and robust flooring solution designed for industrial, commercial, and architectural applications. Made from high-quality carbon or stainless steel, our ...
