Product Details:
Payment & Shipping Terms:
|
| Product Name: | Serrated Type Galvanized Steel Bar Sliding Resistance Grating Platform | Bearing Bar Type: | Serrated |
|---|---|---|---|
| Grating Thickness: | 20mm,25mm,30mm,40mm ,60mm Etc | Bearing Bar Thickness: | 2,3,5,10mm,etc |
| Cross Bar Thickness: | 6,7,8,10mm,etc | Bearing Bar Pitch: | 30mm,40mm ,60mm Etc |
| Cros Bar Pitch: | 38mm,50mm,100mm Etc | Surface: | Galvanized,untreated,stainless Steel |
| High Light: | serrated bar grating,serrated steel bar grating |
||

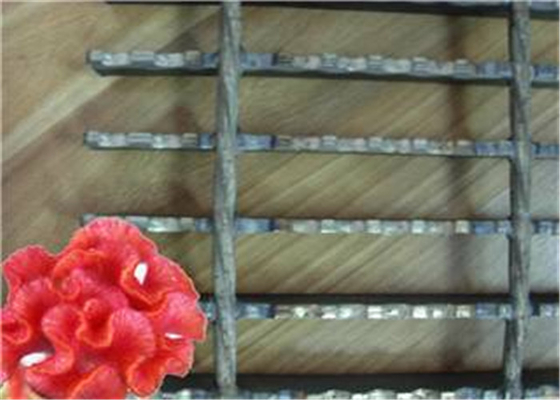

Serrated Type Galvanized Steel Bar Sliding Resistance Grating Platform
Detail description
| Type | Serrated type |
| Standard | 1.China: YB/T4001-1998; 2.USA:ANSI/NAAMM(MBG531-88) 3.UK:BS4592-1987 4.Australia:AS1657-1985; 5.Japan:JIS |
| Material | Q235,A36,SS304 |
| Bearing bar | 1.plain&serrated type:20x3 to 100x3mm 2.I-section type:(25,32,38,40,50)x5x3; (50,55,60,65,70,75)x7x4,etc |
| Surface treatment | untreated, painting or hot dip galvanizing |
| Grating type | 1.Plain style steel grating; 2.serrated style steel grating; 3.I bar type steel grating. |
| Application Fields |
1.steel structure platforms; 4.well covers. |
| Advantages | 1.Low cost for molding or tooling; 2.Advanced &standardization workshops and facilitates; 3.High-tech and high precision manufacturing equipment; 4.Strict ISO 14001:2004,ISO9001:2008 standards; 5.ROHS compliant & environment friendly products; 6.Professional technical specialists and management personnel; 7.100%in house inspection before delivery; 8.All OEM/EDM is acceptable. |
| Item No | Bearing bar pitch | Cross bar pitch | specification os bearing bar(width*thickness) | |||||
| 20*3 | 25*3 | 32*3 | 40*3 | 20*5 | 25*5 | |||
| 1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
| 2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
| 3 | 60 | 50 | G203/60/50 | G253/60/50 | G323/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
Features
Intensity, light structure: strong grid bonding structure makes it with high load, the structure
characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface
treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat
dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.
Our advantages
1. Our company produce various specifications,models as per standards
2. Using high -quality material and advanced production technology and equipment for processing
3. Applicable to a humid climate and the harsh corrosive enviroment
4. Products has been exported to Europe,North American,the Middle East,South East
Asia,Africa,Asia,European,other countries and regions
