Hot-Dip Galvanized Steel Bar Grating with High Strength and Light Structure for Industrial Walkways

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Hot-Dip Galvanized Steel Bar Grating

High Strength Metal Grating

Light Structure Steel Grating

Product Description

Galvanized Bar Grating

Professional galvanized grating manufacturer specializing in floor drain covers, industrial walkways, and steel bar grating solutions.

What is Steel Grating?

Steel grating is manufactured by arranging bearing bars and cross bars in a flat-steel weft pattern. The components are welded together using high-pressure resistance welding, followed by cutting, notching, opening, and edging processes to create finished products tailored to customer specifications.

Product Features

High strength construction with lightweight structure
Exceptional load-bearing capacity
Convenient loading and installation
Hot-dip galvanized coating for superior corrosion resistance

Applications & Benefits

Hot-dip galvanized steel grating offers excellent cost-performance ratio and is widely used in construction projects for paved ditch roads on both new and existing roadbeds. The specialized hot-dip galvanizing treatment provides stable chemical and physical properties, making it resistant to corrosion and oxidation from air and microorganisms, while significantly enhancing trench load capacity.

Product Specifications

Standard Grating Dimensions

Bearing Bar Pitch	Cross Bar Pitch	Load Steel Size (Width × Thickness)
		20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50	-	G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50

Bearing Bar Pitch	Cross Bar Pitch	Load Steel Size (Width × Thickness)
		32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Product Gallery

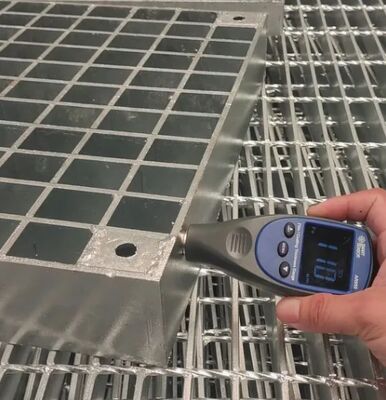

Hot-dip galvanized steel grating installation showing corrosion-resistant surface

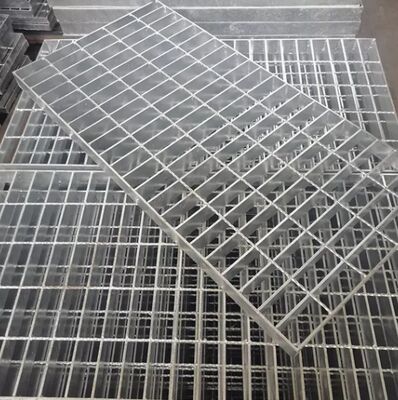

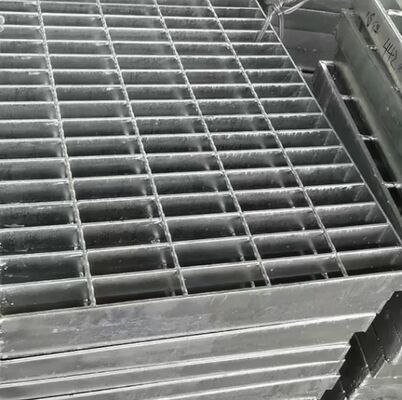

Close-up view of welded steel bar grating with bearing and cross bars

Industrial walkway application of galvanized bar grating for drainage covers

Product Summary

Galvanized Bar Grating Professional galvanized grating manufacturer specializing in floor drain covers, industrial walkways, and steel bar grating solutions. What is Steel Grating? Steel grating is manufactured by arranging bearing bars and cross bars in a flat-steel weft pattern. The components are ...
