Hot Dipped Galvanized Steel Bar Grating with Plain Style and Serrated Bearing Bar for Heavy Duty Platforms

Brand Name:Gnee
Minimum Order Quantity:2PCS
Supply Ability:300000 Square Meter/Square Meters per Month
Product Details
Highlight:

Hot Dipped Galvanized Steel Bar Grating

,

Plain Style Metal Grating

,

Serrated Bearing Bar Floor Grating
Product Description
Hot-Dipped Galvanized Steel Grating
Our hot-dipped galvanized steel grating is available in three specialized types: Plain Style, Serrated Style, and I Bar Type. These durable grating solutions are engineered for industrial applications including steel structure platforms, stair treads, walkways, drainage systems, and well covers.
Custom Manufacturing Capabilities
We offer both standard steel grating products and custom-designed solutions tailored to your specific project requirements and dimensional specifications.
Serrated Steel Grating Features
Our serrated bearing bar grating features a scientifically engineered structure designed for applications requiring superior load-bearing capacity and enhanced safety performance. Manufactured through precision slotting, inserting, welding, and finishing processes.
  • Exceptional load-bearing capacity for heavy industrial platforms
  • Enhanced safety factor for demanding applications
  • Multiple surface treatment options: galvanizing, painting, or dipping
Product Specifications
  • Structure: Welded construction with flat steel and cross/round bars at precise intervals
  • Features: High strength-to-weight ratio, lightweight design, superior load-bearing capacity
  • Surface: Hot-dipped zinc coating provides exceptional corrosion resistance
Technical Specifications Table
Type Width mm Thick mm KG/m Clear Span mm 200 400 600 800 1000 1200 1400
G505/30/50 50 5 80.9 U 2361 590 262 147 94 65 48
D 0.14 0.55 1.24 2.2 3.45 4.97 6.82
G505/30/100 77.9 C 236 118 78 59 47 39 33
D 0.11 0.44 0.99 1.77 2.77 3.99 5.39
G455/30/50 45 5 73.4 U 1912 478 212 119 76 53 39
D 0.15 0.61 1.38 2.45 3.83 5.56 7.62
G455/30/100 70.4 C 191 95 63 47 38 31 27
D 0.12 0.49 1.09 1.94 3.07 4.35 6.06
G355/30/50 35 5 58.4 U 1156 289 128 72 46 32 23
D 0.2 0.79 1.77 3.16 4.94 7.17 9.61
G355/30/100 55.4 C 115 57 38 28 23 19 16
D 0.16 0.62 1.4 2.46 3.97 5.7 7.69
G255/30/50 25 5 43.4 U 590 147 65 36 23 16 12
D 0.28 1.1 2.47 4.35 6.82 9.92 13.9
G255/30/100 40.4 C 59 29 19 14 11 9 8
D 0.22 0.87 1.98 3.39 5.25 7.5 10.71
Product Images

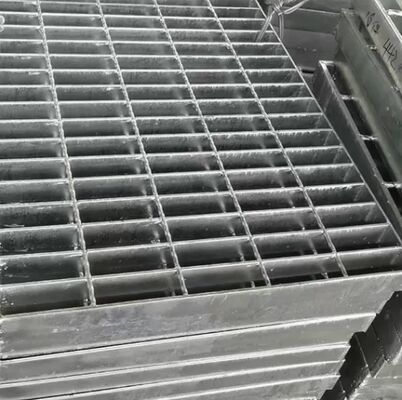

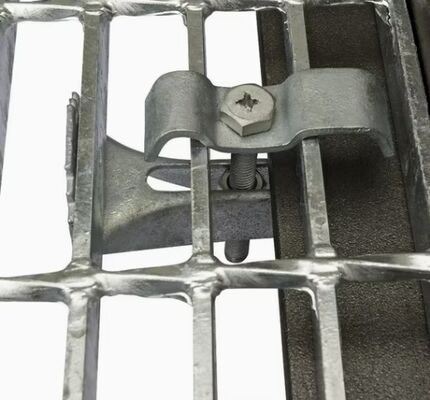

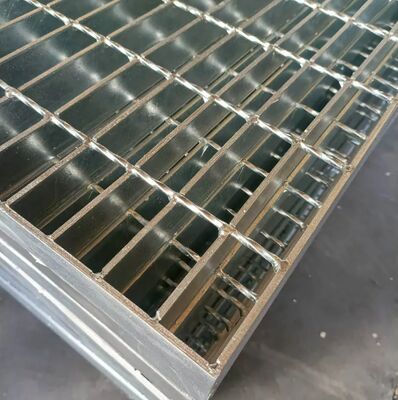

Hot-dipped galvanized steel grating installation example Close-up view of galvanized steel grating surface texture Industrial application of steel grating in platform construction Steel grating used in drainage and walkway systems
Product Summary

Hot-Dipped Galvanized Steel Grating Our hot-dipped galvanized steel grating is available in three specialized types: Plain Style, Serrated Style, and I Bar Type. These durable grating solutions are engineered for industrial applications including steel structure platforms, stair treads, walkways, ...
