Hot DIP Galvanized Pressure Welded 40 60 Pitch Steel Grating for Platform and Walkways
Brand Name:Gnee
Minimum Order Quantity:2PCS
Supply Ability:300000 Square Meter/Square Meters per Month
Tags:
Product Details
Highlight:
Hot DIP Galvanized Steel Grating
,40 60 Pitch Platform Grating
,Pressure Welded Bar Grating
Product Description
Hot DIP Galvanized Pressure Welded 40/60 Pitch Steel Grating
Steel bar grating is engineered for exceptional strength and durability, manufactured from carbon steel, aluminum, or stainless steel. Available in four primary construction types—welded bar, press-locked, swage-locked, and riveted grating—with both smooth and serrated surface options. This versatile product serves numerous applications including stair treads, walkways, platforms, flooring, trench covers, wheeled equipment, security screens, and heavy-duty construction projects.
Product Recommendations
- 30mm Bearing Bar Pitch: The industry standard offering maximum resistance to surface impact, ideal for heavy industrial applications.
- 40mm Bearing Bar Pitch: The most economical and lightweight option, perfect for applications with smaller span requirements.
- 60mm Bearing Bar Pitch with 50mm Cross Bars: Specifically engineered for mining industry applications, designed to prevent mineral splash accumulation.
- 30mm Bearing Bar Pitch with 76mm Cross Bars: The most popular configuration worldwide, suitable for walkways, platforms, and general applications.
Technical Specifications
| Parameter | Specifications |
|---|---|
| Bearing Bar Pitch | 15, 22, 25, 30, 32.5, 34, 40, 50, 60, 80, 90 mm Recommended: 25, 30, 34, 40 mm |
| Bearing Bar Thickness | 3-16 mm |
| Bearing Bar Width | 10-150 mm |
| Cross Bar Pitch | 24-200 mm Recommended: 50, 76, 100 mm |
| Bearing Bar Type | Plain, Serrated, I-section |
| Surface Treatment | Hot Galvanized, Painted, Untreated |
| Material | Stainless Steel, Low Carbon Steel |

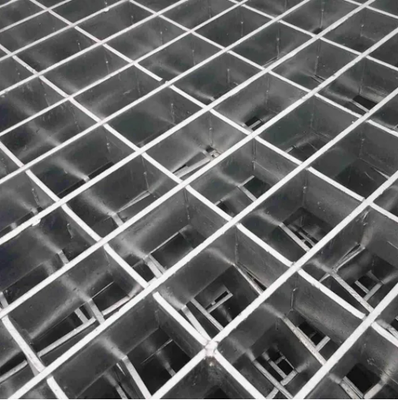

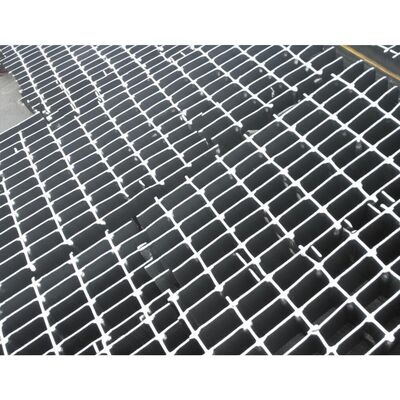

Product Images
Product Summary
Hot DIP Galvanized Pressure Welded 40/60 Pitch Steel Grating Steel bar grating is engineered for exceptional strength and durability, manufactured from carbon steel, aluminum, or stainless steel. Available in four primary construction types—welded bar, press-locked, swage-locked, and riveted grating...
