Hot Dip Galvanized Serrated Stainless Steel Grating for Industrial Walkways and Platforms

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Hot Dip Galvanized Steel Grating

Serrated Metal Bar Grating

Stainless Steel Platform Grating

Product Description

Platform Expanded Metal Mesh Stainless Steel Walkway Galvanized Grating

Welded industrial expanded metal mesh mild steel grating with plain bearing bars. Serrated welded steel grating is manufactured from low carbon steel and stainless steel, featuring high strength, exceptional load-bearing capacity, anti-slip properties, corrosion resistance, superior safety performance, and resistance to rain, snow, and dust accumulation. Designed for long service life, it is widely used as platforms, stair treads, walkways, and floors in industrial, civil, and commercial buildings.

Manufacturing Process

Welded steel grating utilizes pressure welding technology. Bearing bars (flat bars) are positioned in the mold while cross bars are fed through the machine. Two cross bars emerge and are welded into the bearing bars using high-temperature fusion. The result is a durable, integrated grating structure.

Galvanized Steel Grating

Galvanized steel grating undergoes hot-dip galvanization for enhanced protection. Also known as metal bar grating, it consists of flat steel and bars welded at specific intervals to form a rectangular pattern. Typically manufactured from mild carbon steel, these products are used extensively across industrial and commercial applications including walkways, platforms, trench covers, and fencing. Hot-dip zinc coating provides rust prevention and extended durability.

Technical Specifications

Bearing Bar (Load Bar) Specifications

Plain and serrated type: 20 x 3 to 100 x 10 mm
I-section type: 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4 mm

Bearing Bar Pitch (Center to Center)

12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm
Recommended: 30, 40, 60 mm
American standards available: 1" x 3/16", 1 1/4" x 3/16", 1-1/2" x 3/16", 1" x 1/4", 1-1/4" x 1/4", 1 1/2" x 1/4" (19-w-4)

Cross Bar Pitch (Center to Center)

38.1, 40, 50, 60, 76, 80, 90, 100, 101.6, 102, 135 mm

Materials

Mild Steel (Low Carbon Steel) or Stainless Steel

Surface Treatments

Untreated, Painting, or Hot Dip Galvanizing

Product Specifications Table

Item	Description
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10 mm; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 mm; US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8"
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80 mm; US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120 mm, 2" & 4"
Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel
Surface Treatment	Black, self color, hot dip galvanized, painted, spray coating
Grating Style	Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

Product Images

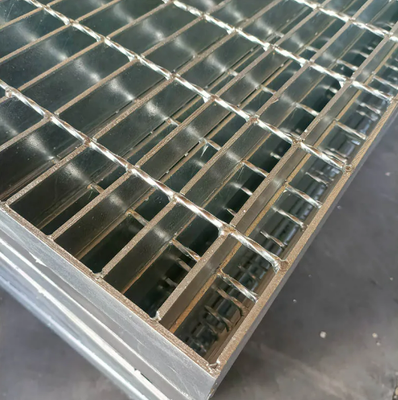

Welded steel grating close-up showing bearing bars and cross bars

Industrial platform installation using galvanized steel grating

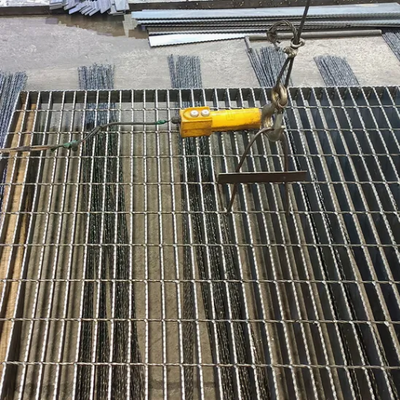

Serrated steel grating surface for anti-slip safety

Product Summary

Platform Expanded Metal Mesh Stainless Steel Walkway Galvanized Grating Welded industrial expanded metal mesh mild steel grating with plain bearing bars. Serrated welded steel grating is manufactured from low carbon steel and stainless steel, featuring high strength, exceptional load-bearing ...
