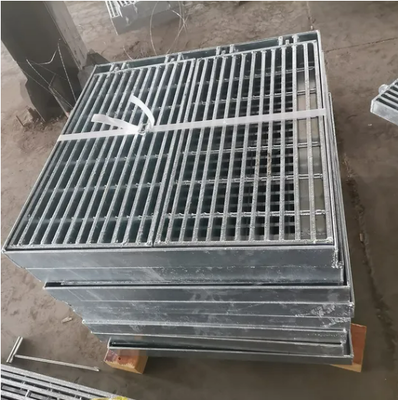

Galvanized Welded Steel Grating with Serrated Surface for Platform Walkways

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Galvanized Steel Grating

Welded Platform Grating

Serrated Bar Grating

Product Description

Platform Walkway Galvanized Welded Steel Grating

Steel bar grating is engineered for high strength and robust structural performance. Manufactured from carbon steel, aluminum, or stainless steel, it offers versatile solutions for various industrial applications. Available in multiple production types including welded bar, press-locked, swage-locked, and riveted grating, with surface options in both smooth and serrated designs.

Technical Specifications

Steel Grades	Low carbon steel, mild steel, stainless steel or following customer requirements
Steel Standards	ASTM A36, A1011, A569, AS3679, BS4360, GB700-88, Q235B, S235JR, S275JR, SS304L, SS316L etc.
Bearing Bar Specifications	Flat bars: 15x2, 20x3 to 100x10, 150x16mm etc. I bars: 25x5x3, 32x5x3, 38x5x3, 40x5x3, 50x5x3, 50x7x4, 55x7x4, 60x7x4, 65x7x4, 70x7x4, 75x7x4mm, or customized USA types: 1" x 3/16", 1 1/4" x 3/16", 1 1/2" x 3/16", 1" x 1/4", 1 1/4" x 1/4", 1 1/2" x 1/4", 1" x 1/8", 1 1/4" x 1/8", 1 1/2" x 1/8" etc.
Bearing Bar Types	Plain/Smooth, Serrated/Teeth, I Bar, Serrated I Bar
Bearing Bar Pitch	12.5, 15, 20, 22, 23.85, 25, 30, 30.16, 30.3, 30.45, 31, 32.5, 33, 34.3, 35, 38, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc., or customized USA types: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Cross Bar Pitch	30, 38, 40, 50, 60, 76, 100, 101.6, 110, 120mm etc., or customized USA types: 4", 3", 2" etc.
Grating Types	Press welded/webforge/electroforge grating, press locked grating, swage grating etc.
Hot Dip Galvanizing Standards	ASTM A123, AS1650, BS729-1971, GB/T13912 etc.
Surface Treatment	Nature/mill finish, hot DIP galvanizing, painting, spraying coating or following customer requirements
Production Standards	China: YB/T4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985 JIS

Key Features

Anti-rust

Durable

Strong

Safe

Easy Installation

Product Characteristics

Designed to withstand repeated load impacts with outstanding durability
Large open area provides excellent drainage function and maintains hygiene
Easy to install and clean for low maintenance requirements
Corrosion resistant after galvanizing for long-term economy
Wide variety of types available for different application requirements

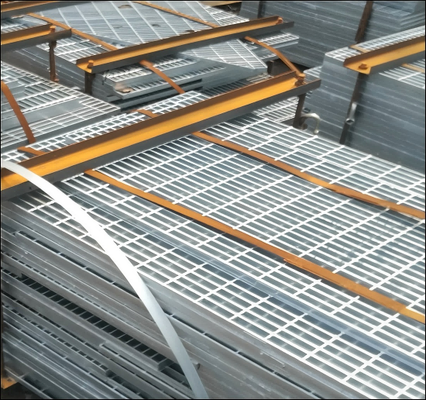

Packaging

Wrapped with film and straps on steel pallet packing or packed according to customer requirements.

Product Gallery

Galvanized steel grating installation showing structural support and open mesh design

Close-up view of welded steel grating surface texture and construction

Industrial platform walkway using galvanized steel grating for safety and durability

Product Summary

Platform Walkway Galvanized Welded Steel Grating Steel bar grating is engineered for high strength and robust structural performance. Manufactured from carbon steel, aluminum, or stainless steel, it offers versatile solutions for various industrial applications. Available in multiple production ...
