Hot-Dip Galvanized Steel Grating Made from Q235/Q345 Carbon Steel with 5 Years Warranty for Heavy Duty Drainage

Brand Name:Gnee
Minimum Order Quantity:2PCS
Supply Ability:300000 Square Meter/Square Meters per Month
Product Details
Highlight:

Hot-Dip Galvanized Steel Grating

,

Q235/Q345 Carbon Steel Grating

,

5 Years Warranty Steel Grating
Product Description
Reliable Heavy Duty Steel Bar Grating for Eco-Friendly Drainage Solutions
What is Steel Grating?
Steel grating is manufactured by arranging bearing bars and cross bars in a flat-steel weft pattern, then welding them together using high-pressure resistance welding. The final product is processed through cutting, incision, opening, and overlock operations to meet specific customer requirements.
Product Advantages
  • High strength construction with lightweight structure
  • Exceptional load-bearing capacity
  • Convenient installation and handling
  • Excellent corrosion resistance through hot-dip galvanizing
  • Superior cost-performance ratio
Applications
Hot-dip galvanized steel grating is widely used in construction projects for paved ditch roads on both new and existing roadbeds. The specialized hot-dip galvanizing treatment provides stable chemical and physical properties, making it resistant to corrosion and oxidation from air and microorganisms while significantly enhancing trench load capacity.
Product Specifications
Product Name Steel Grating
Specification 200×500×30, 200×1000×20, 200×1000×30, 250×500×20, 250×500×30,
250×1000×20, 250×1000×30, 300×500×20, 300×500×30, 300×1000×20,
300×1000×30, 350×500×30, 350×1000×30, 400×600×30, 400×1000×30,
400×1000×60, Customized According to Your Requirements
Product Material Q235/Q345 Carbon Steel / Stainless Steel
Grating Style Plain/Smooth, Serrated/Teeth, I Bar, Serrated I Bar
Surface Treatment Hot-dipped galvanized, Powder coated, Electroplate, Untreated (black), Painting or as per customers' requirement
Sheet Thickness 3mm, 4mm, 5mm, 6mm, 8mm, 9mm, 10mm
Standard China: YB/T 4001.1-2007
USA: ANSI/NAAMM (MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
Application Platform, Walkway, Trestle, Ditch Cover, Manhole Cover, Ladder, Fence, etc.
Warranty 5 Years
Product Images

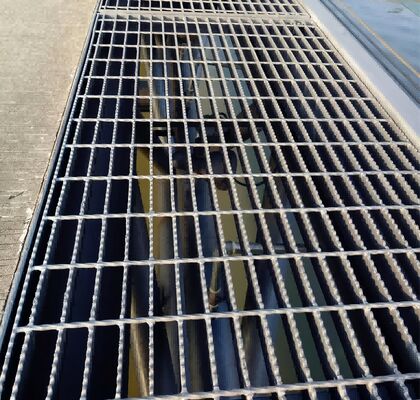

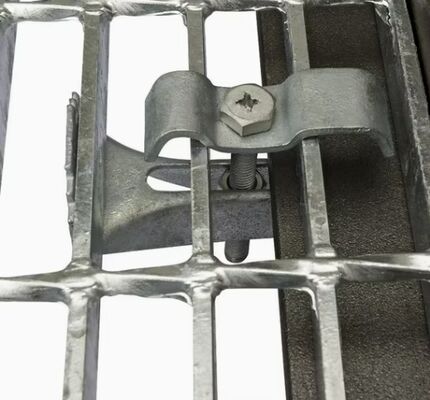

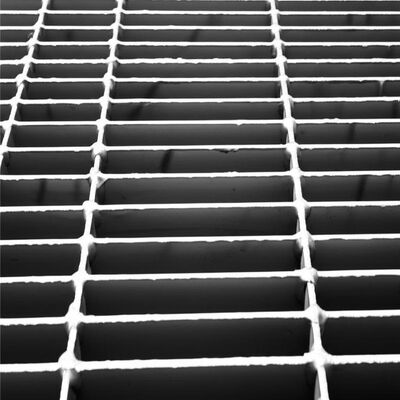

Hot-dip galvanized steel grating installation showing durable construction Close-up view of steel grating surface texture and welding details Steel grating application in industrial drainage system
Product Summary

Reliable Heavy Duty Steel Bar Grating for Eco-Friendly Drainage Solutions What is Steel Grating? Steel grating is manufactured by arranging bearing bars and cross bars in a flat-steel weft pattern, then welding them together using high-pressure resistance welding. The final product is processed ...
