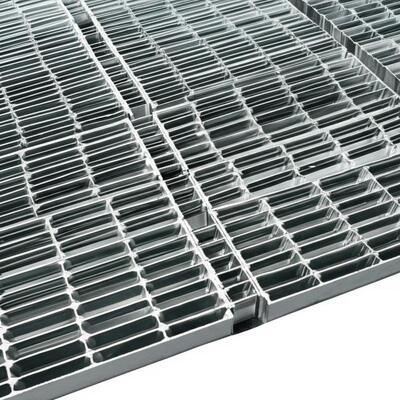

Heavy Duty Hot-Dip Galvanized Serrated Type Steel Grating for Outdoor Drainage and Eco-Friendly Applications

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Hot-Dip Galvanized Steel Grating

Serrated Type Steel Bar Grating

Heavy Duty Metal Grating

Product Description

Heavy Duty Anti-Slip Serrated Steel Deck Grating

Steel grating is manufactured through a precision welding process that combines bearing bars and cross bars arranged in a flat-steel weft pattern. The production involves high-pressure resistance welding followed by cutting, notching, opening, and overlocking processes to create finished products that meet specific customer requirements.

Our steel gratings feature exceptional strength-to-weight ratio, lightweight construction, superior load-bearing capacity, and easy installation. The hot-dip galvanized coating provides outstanding corrosion resistance for long-lasting performance.

Product Advantages

Hot-dip galvanized steel grating offers exceptional cost-effectiveness and is widely used in construction projects for paved drainage systems on both new and existing roadbeds. The specialized hot-dip galvanizing treatment creates stable chemical and physical properties that resist corrosion and oxidation from environmental exposure and microorganisms, significantly enhancing trench load capacity.

Surface Treatment Processes

Stainless Steel Finishing Options

Pickling Passivation: Immersing the stainless steel grating in specialized solution to achieve a uniform silver-white matte surface finish
Electrolytic Polishing: Processing in heated electrolytic solution at 75°C for 1-3 minutes to produce a bright, polished stainless steel surface

Technical Specifications

Materials	Q195, Q235, Q235B / 304, 316 Stainless Steel
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm I-bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 US Standard: 1"x3/16", 1-1/4"x3/16", 1-1/2"x3/16", 1"x1/4", 1-1/4"x1/4", 1-1/2"x1/4", 1"x1/8", 1-1/4"x1/8", 1-1/2"x1/8"
Bearing Bar Pitch	12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm US Standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2
Twisted Cross Bar Pitch	38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4"
Steel Grade	ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild Steel & Low Carbon Steel
Surface Treatment	Black, Self Color, Hot Dip Galvanized, Painted, Spray Coating
Grating Style	Plain/Smooth, Serrated/Teeth, I-bar, Serrated I-bar
Grating Standards	China: YB/T 4001.1-2007 USA: ANSI/NAAMM (MBG531-88) UK: BS4592-1987 Australia: AS1657-1985 Japan: JJS

Product Images

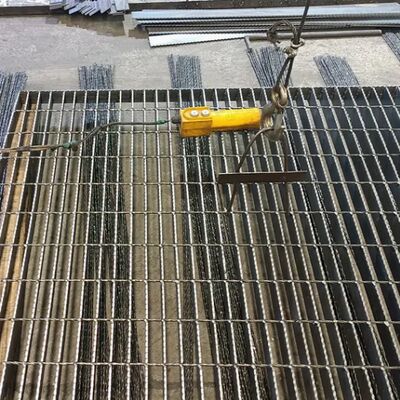

Heavy duty anti-slip serrated steel deck grating installation

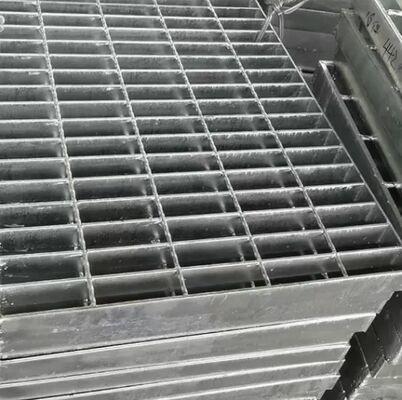

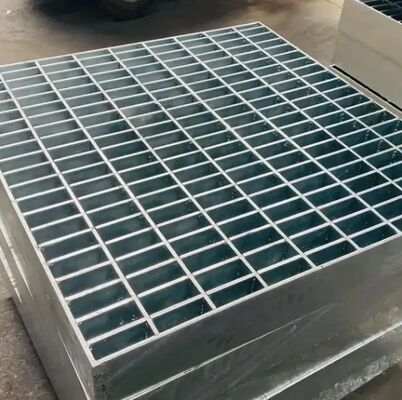

Hot-dip galvanized steel grating close-up detail

Steel grating drainage application in construction

Product Summary

Heavy Duty Anti-Slip Serrated Steel Deck Grating Steel grating is manufactured through a precision welding process that combines bearing bars and cross bars arranged in a flat-steel weft pattern. The production involves high-pressure resistance welding followed by cutting, notching, opening, and ...
