Heavy Duty Galvanized Serrated Steel Grating - Pressure Locked Bar Grating for Industrial Platforms

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Galvanized Steel Grating

Serrated Bar Grating

Heavy Duty Pressure Locked Grating

Product Description

Steel Bar Grating Products

Pressure Welded Steel Grating, Heavy Duty Steel Grating, Galvanized Serrated Steel Grating, Press Locked Steel Grating, Swage Locked Steel Grating

Product Overview

Steel bar grating is an open grid assembly of steel bars known for its high strength and robust structure. It consists of bearing bars with greater cross-sectional depth than width, held at equal parallel spacing by cross bars. The construction type is determined by how cross bars are attached.

This extremely strong and durable grating is ideal for load-bearing applications including pedestrian and light vehicle traffic. Available in various bearing bar spacing, depths, and widths to meet specific load requirements.

Technical Specifications

Standard Specifications Table

Pitch of Bearing Bar	Cross-bar Pitch	20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50

Pitch of Bearing Bar	Cross-bar Pitch	32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Materials

Q195, Q235, Q235B / 304 316 Stainless Steel

Bearing Bar Sizes

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3

US Standard Sizes

1" x 3/16", 1 1/4" x 3/16", 1 1/2" x 3/16", 1" x 1/4", 1 1/4" x 1/4", 1 1/2" x 1/4", 1" x 1/8", 1 1/4" x 1/8", 1 1/2" x 1/8"

Bearing Bar Pitch

12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm

US Standard Pitch

19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2

Twisted Cross Bar Pitch

38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4"

Steel Grade

ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel

Surface Treatment

Black, self colour, hot dip galvanized, painted, spray coating

Grating Style

Plain / Smooth, Serrated / teeth, I bar, serrated I bar

Grating Standards

China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JJS

Applications

Walkways and Mezzanines
Stair Landings and Step Treads
Trailer Flooring
Bridge Platforms
Industrial Platforms
Trench Grates and Drain Covers

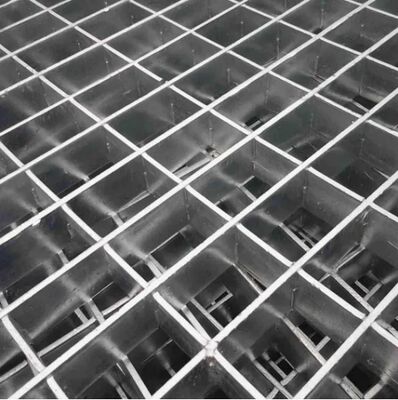

Steel grating installation example showing industrial application

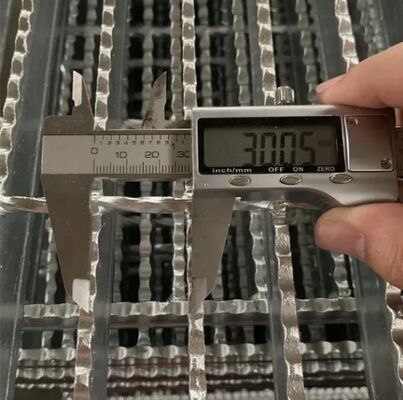

Close-up view of steel grating surface and construction

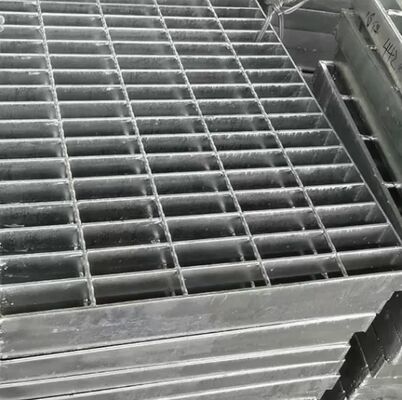

Steel grating used in walkway and platform applications

Product Summary

Steel Bar Grating Products Pressure Welded Steel Grating, Heavy Duty Steel Grating, Galvanized Serrated Steel Grating, Press Locked Steel Grating, Swage Locked Steel Grating Product Overview Steel bar grating is an open grid assembly of steel bars known for its high strength and robust structure. It ...
