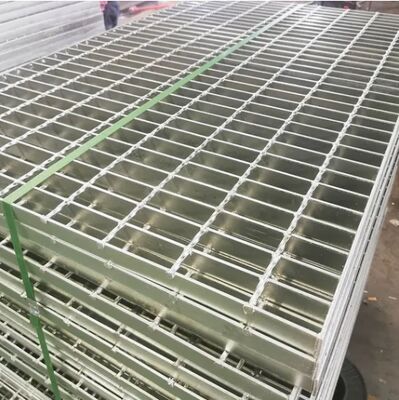

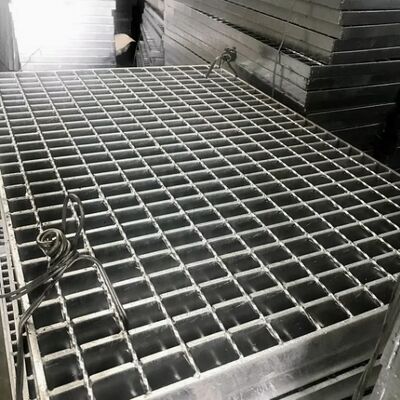

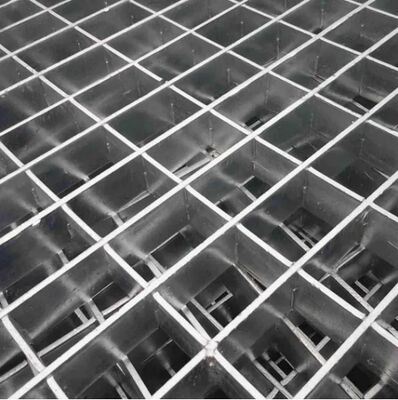

Heavy Duty Hot Dip Galvanized Steel Grating for Industrial Platform Flooring

Heavy Duty Hot Dip Galvanized Steel Grating for Industrial Platform Flooring
Heavy Duty Hot Dip Galvanized Steel Grating for Industrial Platform Flooring Heavy Duty Hot Dip Galvanized Steel Grating for Industrial Platform Flooring Heavy Duty Hot Dip Galvanized Steel Grating for Industrial Platform Flooring Heavy Duty Hot Dip Galvanized Steel Grating for Industrial Platform Flooring

Large Image :  Heavy Duty Hot Dip Galvanized Steel Grating for Industrial Platform Flooring

Product Details:
Brand Name: Gnee
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Packaging Details: Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Delivery Time: Shipped in 20 days after payment
Supply Ability: 300000 Square Meter/Square Meters per Month
Contact Now

Heavy Duty Hot Dip Galvanized Steel Grating for Industrial Platform Flooring

Description
Highlight:

Hot Dip Galvanized Steel Grating

,

Heavy Duty Bar Grating

,

Industrial Platform Flooring Metal Grating

Heavy Duty Galvanized Steel Grating for Industrial Platform Flooring
Steel bar grating is engineered for high strength and robust structural performance, manufactured from carbon steel, aluminum, or stainless steel. Available in four primary types—welded bar grating, press-locked grating, swage-locked grating, and riveted grating—with both smooth and serrated surface designs. This versatile product serves numerous industrial applications including stair treads, walkways, platforms, flooring, trench covers, wheeled equipment, security screens, and heavy-duty construction projects.
Metal Bar Grating Components
  • Span: Total span measurement
  • Width: Panel width specification
  • Bearing Bars: Primary load-carrying structural elements
  • Bearing Bars Spacing: Center-to-center measurement in 1/16″ increments. Standard industrial flooring spacing is 19/16″ (1-3/16″). Other common spacings include 15/16″, 11/16″, 1/2″, and 7/16″ on center
  • Bearing Bars Depth: Ranges from 3/4″ to 7″ based on anticipated load requirements
  • Bearing Bars Thickness: Ranges from 1/8″ to 1/2″ depending on load specifications
  • Cross Bars: Structural elements that secure bearing bar positioning
  • Cross Bar Spacing: Center-to-center measurement in 1″ increments. Standard spacing is 4″ or 2″ on center
Technical Specifications
Bearing Bar Height (mm) 20/25/30/32/35/40/44/45/50/90/95/100, etc.
Bearing Bar Thickness (mm) 3/5/10, etc.
Bearing Bar Pitch (mm) 20/25/30/31/32.5/33/34/40/41/43/50, etc.
Cross Bar Pitch (mm) 30/38/50/66/100, etc.
Surface Treatment Hot dip galvanized/Painted
Note: Sizes can be customized. Please contact us for specific requirements.
Product Details
Product Definition
Manufactured from flat steel with one serrated side, welded together for maximum strength and durability.
Material & Manufacturing
Flat Steel Types: Serrated flat steel, I-type flat steel, and twisted steel bar
Welding Process: Pressure-locking techniques ensure solid structural integrity
Surface Treatment: Hot-dip galvanizing to BS EN ISO 1461 standards for superior rust prevention
Product Series: Available in various series including 30mm/40mm/60mm bearing bar spacing for diverse application requirements
