Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications

Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications
Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications

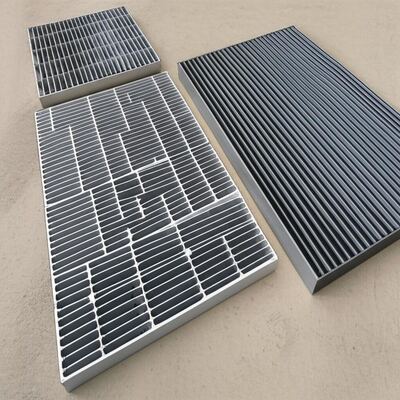

Large Image :  Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications

Product Details:
Brand Name: Gnee
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Packaging Details: Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Delivery Time: Shipped in 20 days after payment
Supply Ability: 300000 Square Meter/Square Meters per Month
Contact Now

Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications

Description
Highlight:

Serrated Steel Grating

,

Galvanized Bar Grating

,

Heavy Duty Metal Grating

Steel Grating Solutions
Steel bar grating is engineered for exceptional strength and durability, manufactured from carbon steel, stainless steel, or aluminum. Available in multiple production types including welded, press-locked, swage-locked, and riveted configurations, these gratings offer both smooth and serrated surface options to meet diverse application requirements.
Applications
Steel grating serves numerous industrial and commercial purposes including stair treads, walkways, platforms, flooring systems, trench covers, wheeled equipment pathways, security screens, and heavy-duty construction projects.
Grating Components & Specifications
Key Components
  • Span: Total span measurement
  • Width: Panel width dimension
  • Bearing Bars: Primary load-carrying structural elements
  • Bearing Bars Spacing: Center-to-center measurement in 1/16″ increments (standard industrial spacing: 19/16″)
  • Bearing Bars Depth: Ranges from 3/4″ to 7″ based on load requirements
  • Bearing Bars Thickness: Ranges from 1/8″ to 1/2″ depending on anticipated loads
  • Cross Bars: Structural elements that secure bearing bar positioning
  • Cross Bar Spacing: Center-to-center measurement in 1″ increments (standard: 4″ or 2″)
Material Options
Material Carbon Steel, Stainless Steel, Aluminum
Surface Treatment Hot-dipped galvanized, Spray painting, Polished, Powder coated
Bearing Bar Type Plain (Flat) bar, Serrated bar, I-bar
Common Specifications
Bearing Bar Pitch (mm) Cross Bar Pitch (mm) Bearing Bar Size
30 100 WSG_203/253/323/403/205/325/405/455/505/555_30_100
30 50 WSG_203/253/323/403/205/325/405/455/505/555_30_50
40 100 WSG_203/253/323/403/205/325/405/455/505/555_40_100
40 50 WSG_203/253/323/403/205/325/405/455/505/555_40_50
60 50 WSG_203/253/323/403/205/325/405/455/505/555_60_50
For questions regarding dimensions or specific specifications, please contact us immediately for expert assistance.
