Heavy Duty Galvanized Steel Grating for Industrial Drainage Channels and Marine Applications

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Galvanized Steel Grating

Heavy Duty Bar Grating

Drainage Channel Metal Grating

Product Description

Industrial Marine Heavy Duty Galvanized Steel Grating

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed to hold heavy loads with minimal weight. The bearing bars, running in one direction, are spaced by rigid attachment to crossbars running perpendicular to them or by bent connecting bars extending between them.

This heavy-duty galvanized steel grating is widely used as floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.

Manufacturing Processes

Welded Grating

The most commonly used and economical design suitable for most industrial applications. Manufactured by welding the bearing bar and crossbar intersection, typically with automated forge welding equipment or professional manual welding. Available in carbon steel or stainless steel.

Swaged Pressure Locked

Assembled by inserting pre-punched bearing and cross bars into an "egg-crate" configuration and deforming the cross bars under intense hydraulic pressure. Available in all materials and ideal for architectural and ornamental applications.

Dovetail Pressure Locked

Insert the cross bar into the pre-punched bearing bar and hydraulically deform it to lock it in place. The cross bar here is usually a straight plate shaped like a bearing bar.

Welded Swaged Pressure Locked

An upgraded version of the swaged pressure locked design. Each intersection is manually welded once to make it stronger and capable of withstanding heavier loads.

Technical Specifications

Specification	Description
Material	304, 304L, 316, 316L stainless steel
Manufacturing Process	Welded, swage-locked, or press-locked
Surface Type	Standard plain surface, serrated surface
Cross Bar Spacing	2" or 4", center to center
Bearing Bar Spacing	15/16" or 1-3/16", center to center
Bearing Bar Height	20mm to 60mm
Bearing Bar Thickness	2mm to 5mm
Cross Bar Size	4mm to 10mm diameter
Slip Resistance	Serrated or plain surface, depending on the application
Installation Method	Welding, clips, or bolts and nuts, depending on the application
Compliance	Meets industry standards and applicable building codes, including ASTM, ISO, and ANSI/NAAMM

Product Images

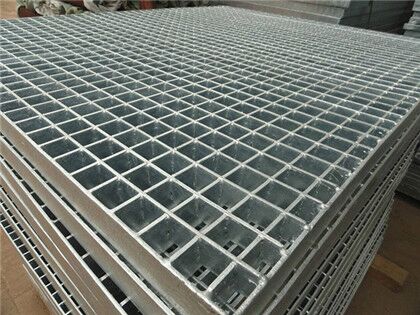

Industrial marine heavy duty galvanized steel grating installation

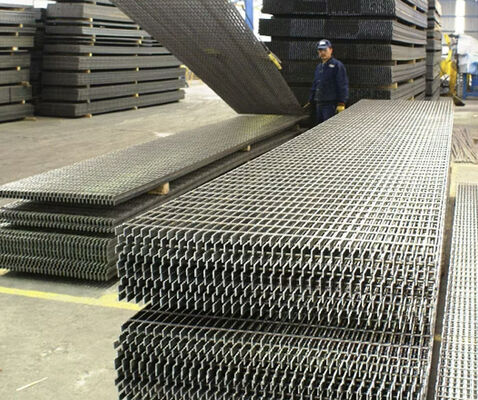

Close-up view of steel grating pattern and construction

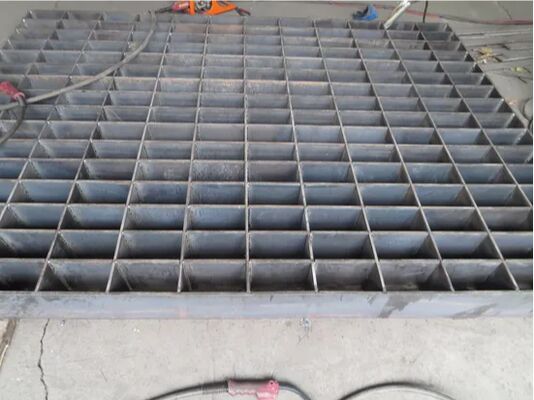

Steel grating used in industrial marine drainage application

Product Summary

Industrial Marine Heavy Duty Galvanized Steel Grating Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed to hold heavy loads with minimal weight. The bearing bars, running in one direction, are spaced by rigid attachment to crossbars running ...
