Hot-Dip Galvanized Heavy Duty Steel Grating with 40-50 Years Lifespan and 30mm Spacing for Industrial Flooring

Hot-Dip Galvanized Heavy Duty Steel Grating with 40-50 Years Lifespan and 30mm Spacing for Industrial Flooring
Hot-Dip Galvanized Heavy Duty Steel Grating with 40-50 Years Lifespan and 30mm Spacing for Industrial Flooring Hot-Dip Galvanized Heavy Duty Steel Grating with 40-50 Years Lifespan and 30mm Spacing for Industrial Flooring Hot-Dip Galvanized Heavy Duty Steel Grating with 40-50 Years Lifespan and 30mm Spacing for Industrial Flooring Hot-Dip Galvanized Heavy Duty Steel Grating with 40-50 Years Lifespan and 30mm Spacing for Industrial Flooring

Large Image :  Hot-Dip Galvanized Heavy Duty Steel Grating with 40-50 Years Lifespan and 30mm Spacing for Industrial Flooring

Product Details:
Brand Name: Gnee
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Packaging Details: Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Delivery Time: Shipped in 20 days after payment
Supply Ability: 300000 Square Meter/Square Meters per Month
Contact Now

Hot-Dip Galvanized Heavy Duty Steel Grating with 40-50 Years Lifespan and 30mm Spacing for Industrial Flooring

Description
Highlight:

Hot-Dip Galvanized Steel Grating

,

40-50 Years Lifespan Heavy Duty Steel Grating

,

30mm Spacing Galvanized Steel Grating

Heavy Duty Galvanized Steel Grating for Industrial Flooring Solutions
Hot-dip galvanized steel grating is a grid-shaped building material manufactured by welding low carbon steel flat bars and twisted square bars horizontally and vertically. This industrial flooring solution offers exceptional impact resistance, superior corrosion protection, heavy load capacity, and an aesthetically pleasing appearance, making it ideal for municipal roadbed and steel platform construction projects.
Key Features & Benefits
  • Exceptional impact resistance for demanding industrial environments
  • Superior corrosion resistance through hot-dip galvanization
  • Heavy load capacity for structural integrity
  • Cost-effective solution with excellent value
  • Extended service life of 40-50 years under normal conditions
  • Enhanced trench load capacity to prevent collapse
  • Stable chemical and physical properties resistant to environmental factors
Applications
Due to its exceptional cost-performance ratio, hot-dip galvanized steel grating is widely used in construction projects for paved ditch roads on both new and existing roadbeds. The 3cm spacing between flat steel bars provides maximum impact resistance and span capabilities, making it an optimal choice for steel frame structures and load-bearing platforms.
Product Specifications
Pitch of Bearing Bar Cross-bar Pitch Specification of Bearing Bar (width x thickness)
30 100 G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100
50 G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50
40 100 G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100
50 G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50
60 50 G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50
Pitch of Bearing Bar Cross-bar Pitch Specification of Bearing Bar (width x thickness)
30 100 G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100
50 G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50
40 100 G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100
50 G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50
60 50 G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50

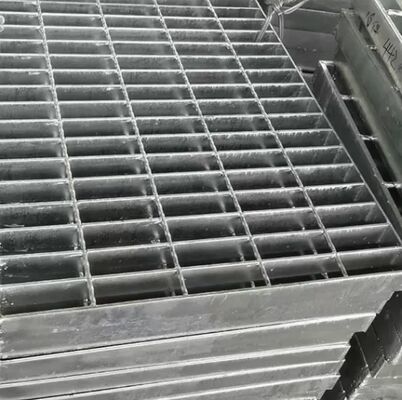

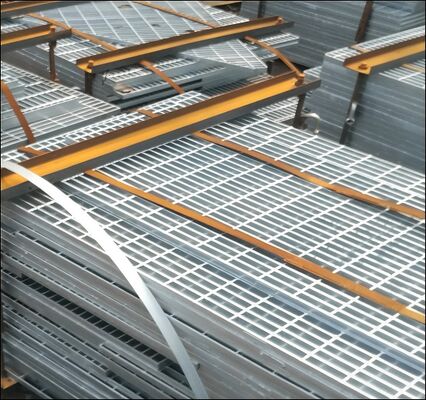

Product Images
Hot-Dip Galvanized Heavy Duty Steel Grating with 40-50 Years Lifespan and 30mm Spacing for Industrial Flooring 0 Hot-Dip Galvanized Heavy Duty Steel Grating with 40-50 Years Lifespan and 30mm Spacing for Industrial Flooring 1 Hot-Dip Galvanized Heavy Duty Steel Grating with 40-50 Years Lifespan and 30mm Spacing for Industrial Flooring 2
