Hot Dipped Galvanized Steel Bar Grating Stair Tread for Heavy Load Bearing with Customizable Sizes
Brand Name:Gnee
Minimum Order Quantity:2PCS
Supply Ability:300000 Square Meter/Square Meters per Month
Tags:
Product Details
Highlight:
Hot Dipped Galvanized Steel Bar Grating
,Heavy Load Bearing Steel Stair Tread
,Customizable Sizes Metal Grating
Product Description

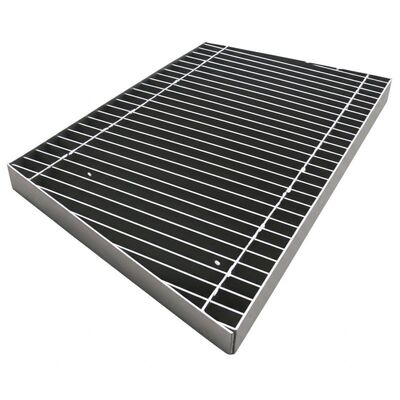

Hot Dipped Galvanized Steel Bar Grating Stair Tread
Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed to hold heavy loads with minimal weight. The bearing bars run in one direction and are spaced by rigid attachment to cross bars running perpendicular to them, creating a durable structural framework.
This versatile product is widely used as floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in various industrial settings including factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.
Manufactured through a precise process of high-pressure resistance welding, steel grating undergoes cutting, incision, opening, and overlock processing to meet specific customer requirements. The finished product consists of bearing bars and cross bars arranged in a flat-steel weft configuration.
Product Specifications
| No. | Item | Description |
|---|---|---|
| 1 | Bearing Bar | 20 x 5, 25 x 3, 30 x 3, 30 x 5, 32 x 3, 32 x 5, etc. |
| 2 | Bearing Bar Pitch | 15mm, 25mm, 30mm, 40mm, 50mm, or as customers' requirement |
| 3 | Cross Bar | 5 x 5, 6 x 6 (twisted bar or round bar) |
| 4 | Cross Bar Pitch | 40mm, 50mm, 60mm, 100mm, or as customers' requirement |
| 5 | Flat Bar Type | Plain, serrated (tooth-like), I bar (I-section), serrated I-shape bar |
| 6 | Surface Treatment | Untreated, hot dip galvanized, powder coated, and electro polished, etc. |
| 7 | Steel Grating Standards | China: YB/T4001.1-2007; US: ANSI/NAAMM(MBG531-88); UK: BS4592-1987 |
| 8 | Steel Product Standard | China: GB700-88; US: ASTM(A36); UK: 43A |
| 9 | Hot Galvanized Standard | China: GB/T13912; US: ASTM(A123); UK: BS729 |

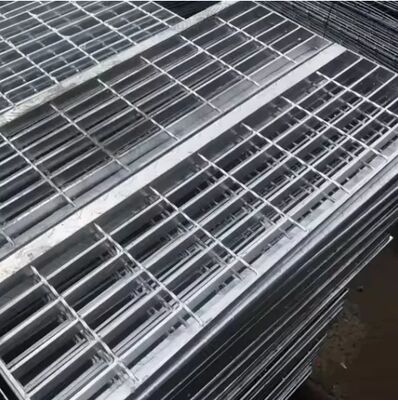

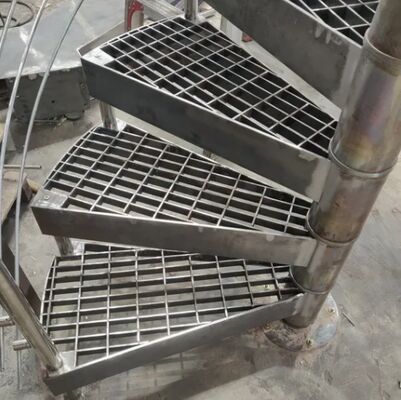

Product Images
Product Summary
Hot Dipped Galvanized Steel Bar Grating Stair Tread Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed to hold heavy loads with minimal weight. The bearing bars run in one direction and are spaced by rigid attachment to cross bars running ...
