Plan Surface Steel Bar Grating with 25x3 Bearing Bar and Hot Dip Galvanized for Walkway Platforms

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Plan Surface Steel Bar Grating

25x3 Bearing Bar Platform Grating

Hot Dip Galvanized Metal Grating

Product Description

Plan Surface Steel Bar Grating for Walkway Platforms

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed to hold heavy loads with minimal weight. The bearing bars run in one direction and are spaced by rigid attachment to cross bars running perpendicular to them. This versatile material is widely used as floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in industrial settings including factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.

Product Specifications

Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm etc. I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8" etc.
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc.
Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc.
Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
Grating Style	Plain / Smooth, Serrated / teeth, I bar, serrated I bar

Product Gallery

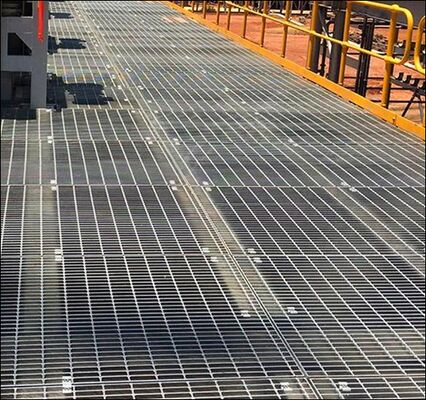

Steel bar grating installation in industrial walkway

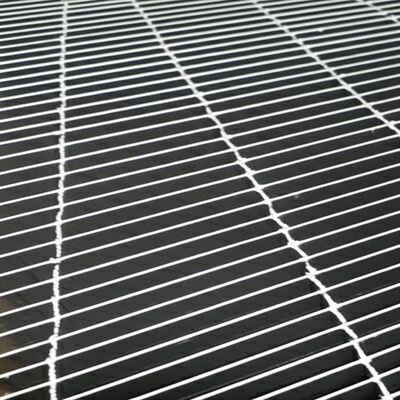

Close-up view of steel grating surface pattern

Steel grating used as platform flooring in factory setting

Product Summary

Plan Surface Steel Bar Grating for Walkway Platforms Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed to hold heavy loads with minimal weight. The bearing bars run in one direction and are spaced by rigid attachment to cross bars running ...
