Galvanized Stainless Steel Grating with 38/50/76/100mm Cross Bar Pitch for Optimal Drainage

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Galvanized Steel Grating

38/50/76/100mm Cross Bar Pitch Bar Grating

Stainless Steel Metal Grating

Product Description

Galvanized Cross Bar Pitch Drain Stainless Steel Channel Grating

Steel grating, also known as steel grid or bar grating, is a versatile and robust flooring solution designed for industrial, commercial, and architectural applications. Manufactured from high-quality carbon or stainless steel, our steel grating features a lightweight yet durable design that ensures excellent load-bearing capacity and long-lasting performance.

Key advantages include slip-resistant surfaces, customizable sizes, and various spacing options to suit different requirements. The open design allows for optimal drainage and air circulation, making it ideal for demanding environments such as factories, walkways, and drainage covers.

Whether you require heavy-duty steel grating for energy sectors or lightweight options for pedestrian areas, our products meet safety standards while facilitating easy installation and maintenance. Enhance your project with our top-quality steel grating to achieve maximum efficiency and safety.

Metal Bar Grating Components and Specifications

Span: Total span measurement
Width: Panel width dimension
Bearing Bars: Load carrying main structural element
Bearing Bars Spacing: Center-to-center measurement in 1/16″ increments. Standard industrial flooring spacing is 19/16″ (1-3/16″). Other popular spacings include 15/16″, 11/16″, 1/2″, and 7/16″ on center.
Bearing Bars Depth: Ranges from 3/4″ to 7″ depending on anticipated loads
Bearing Bars Thickness: Ranges from 1/8″ to 1/2″ depending on anticipated loads
Cross Bars: Used to secure the position of bearing bars
Cross Bar Spacing: Center-to-center measurement in 1″ increments. Standard spacing is 4″ or 2″ on center.

Standard Steel Grating Dimensions

Bearing Bar	25mmx3mm	30mmx3mm	35mmx5mm	40mmx5mm	50mmx6mm	Custom-made
Bearing Bar Pitch	30mm	35mm	38mm	40mm	50mm	Custom-made
Cross Bar Pitch	33mm	54mm	64mm	100mm	150mm	Custom-made
Width	914mm	1000mm	2000mm			Custom-made
Length	1000mm	2000mm	3000mm	5800mm	6000mm	Custom-made

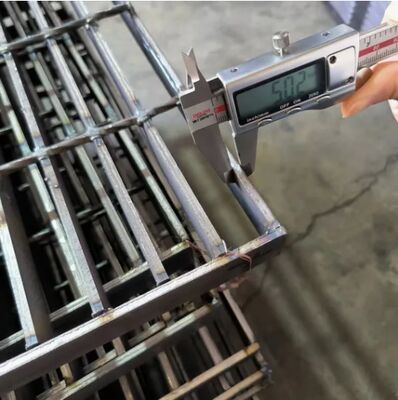

Galvanized steel grating installation and close-up view showing bearing bar and cross bar structure

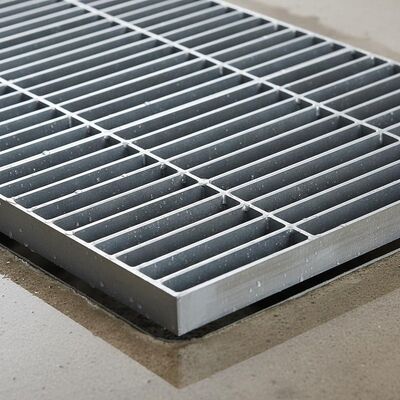

Steel grating application in industrial flooring with drainage functionality

Product Summary

Galvanized Cross Bar Pitch Drain Stainless Steel Channel Grating Steel grating, also known as steel grid or bar grating, is a versatile and robust flooring solution designed for industrial, commercial, and architectural applications. Manufactured from high-quality carbon or stainless steel, our ...
