Galvanized Heavy Duty Steel Grating Drain Cover - Corrosion Resistant Metal Channel Grating

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Galvanized Steel Grating Drain Cover

Heavy Duty Steel Drainage Cover

Corrosion Resistant Metal Channel Grating

Product Description

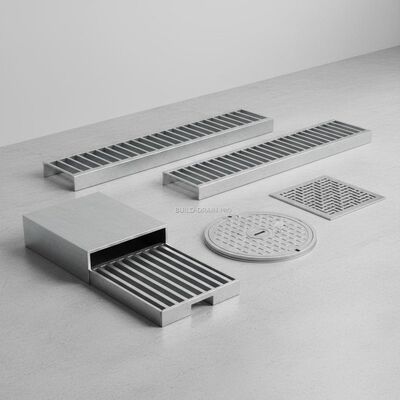

Steel Grating Products: Channel Drains, Manhole Covers & Floor Drain Grating

What is Steel Grating?

Steel grating (galvanized high heel trench grating) is manufactured by arranging bearing bars and cross bars in a flat-steel weft pattern. The components are welded together using high-pressure resistance welding technology, then processed through cutting, incision, opening, and overlock operations to meet specific customer requirements.

Steel Grating Specifications

Bearing Bar Pitch	Cross Bar Pitch	Load Steel Size (Width × Thickness)
		20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50	-	G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50

Bearing Bar Pitch	Cross Bar Pitch	Load Steel Size (Width × Thickness)
		32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

International Steel Grating Standards

Country Standard	Steel Grating Standard	Steel Standard	Galvanizing Standard
China Standard	YB/T 4001.1-2007	GB700-88	GB/T13912-2002
USA Standard	ANSI/NAAMM (MBG531)	ASTM (A36)	ASTM (A123)
U.K. Standard	BS4592	BS4360 (43A)	BS729
Australia Standard	AS1657	AS3679	AS1650
Deutsche Standard	DIN24537	DIN17100-80	DIN50976

Packaging & Handling

Steel grating is typically stacked and secured with two pieces of square wood placed on both upper and bottom sides. Four to six M10 long bolts penetrate through the gratings and are screwed together for secure bundling. This packaging method is suitable for efficient loading and unloading using forklifts and cranes.

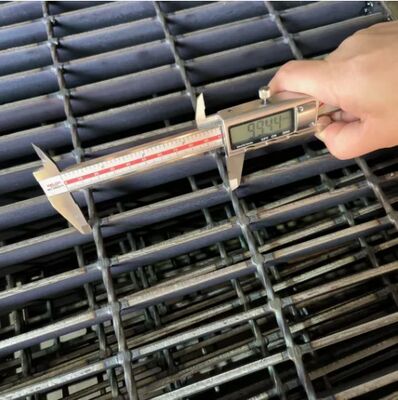

Steel grating manufacturing process and close-up detail

Industrial steel grating installation in drainage system

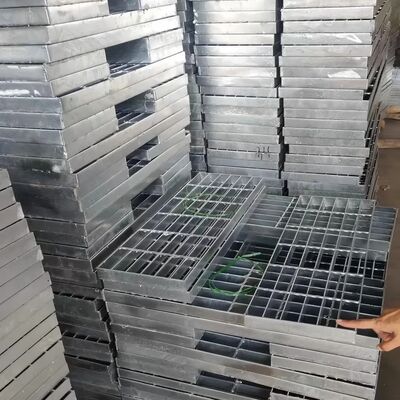

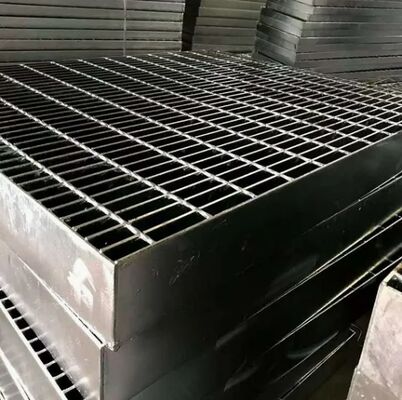

Finished steel grating products ready for shipment

Product Summary

Steel Grating Products: Channel Drains, Manhole Covers & Floor Drain Grating What is Steel Grating? Steel grating (galvanized high heel trench grating) is manufactured by arranging bearing bars and cross bars in a flat-steel weft pattern. The components are welded together using high-pressure ...
