Serrated Bearing Bar Steel Grating Drain Cover with Hot Dipped Galvanized Surface for High Bearing Capacity

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Serrated Bearing Bar Steel Grating Drain Cover

Hot Dipped Galvanized Drainage Grating

High Bearing Capacity Steel Drain Grate

Product Description

Customized Anti-slip Serrated Steel Grating

This high-quality modern style stainless steel grating features serrated bearing bars for superior anti-slip performance. Engineered with scientific and rational structural design, it is ideal for applications requiring high load-bearing capacity and professional appearance. Manufactured through precision slotting, inserting, welding, and finishing processes, this steel grating offers exceptional durability and safety for industrial platforms.

Product Specifications

Product Name	Customized Anti-slip Serrated Steel Grating
Material	Mild Steel (Low Carbon Steel), S235, S275JR, A36, or Stainless Steel SS304, SS316 etc.
Surface Treatment	Hot dipped galvanized, polished or untreated
Grate Size	Customized to customer requirements

Standard Dimensions

Bearing Bar Width x Thickness: 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5,...75x10mm
Bearing Bar Pitch: 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm
US Standard: 1"x3/16", 1¼"x3/16", 1½"x3/16", 1"x¼", 1¼"×¼", 1½"x¼" etc.
Cross Bar Pitch: 38, 50, 76, 100, 101.6mm or custom

Product Model Specifications

Standard Specifications Table

Pitch of Bearing Bar	Cross-bar Pitch	Specification of Bearing Bar (width x thickness)
30	100	G203/30/100 \| G253/30/100 \| G323/30/100 \| G403/30/100 \| G205/30/100 \| G255/30/100
30	50	G203/30/50 \| G253/30/50 \| G323/30/50 \| G403/30/50 \| G205/30/50 \| G255/30/50
40	100	G203/40/100 \| G253/40/100 \| G323/40/100 \| G403/40/100 \| G205/40/100 \| G255/40/100
40	50	G203/40/50 \| G253/40/50 \| G323/40/50 \| G403/40/50 \| G205/40/50 \| G255/40/50
60	50	G253/60/50 \| G253/60/50 \| G403/60/50 \| G205/60/50 \| G255/60/50

Extended Specifications

Pitch of Bearing Bar	Cross-bar Pitch	Specification of Bearing Bar (width x thickness)
30	100	G325/30/100 \| G405/30/100 \| G455/30/100 \| G505/30/100 \| G555/30/100 \| G605/30/100
30	50	G325/30/50 \| G405/30/50 \| G455/30/50 \| G505/30/50 \| G555/30/50 \| G605/30/50
40	100	G325/40/100 \| G405/40/100 \| G455/40/100 \| G505/40/100 \| G555/40/100 \| G605/40/100
40	50	G325/40/50 \| G405/40/50 \| G455/40/50 \| G505/40/50 \| G555/40/50 \| G605/40/50
60	50	G325/60/50 \| G405/60/50 \| G455/60/50 \| G505/60/50 \| G555/60/50 \| G605/60/50

Product Images

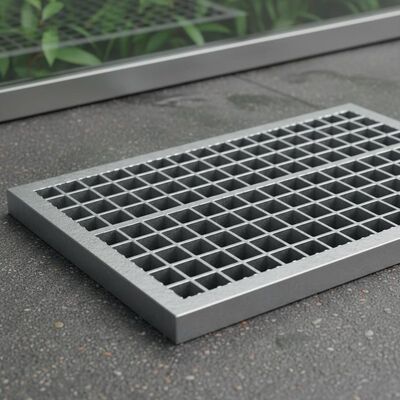

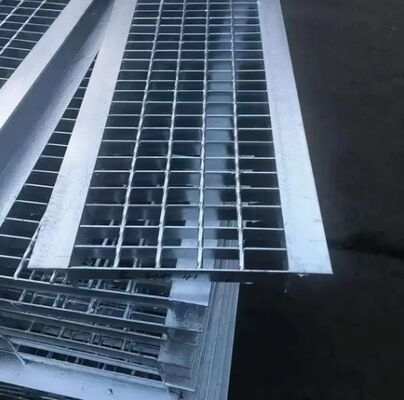

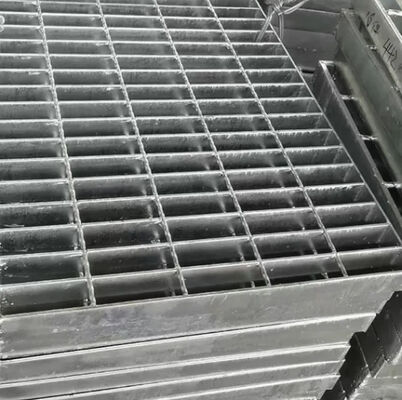

Hot dipped galvanized serrated steel grating product view

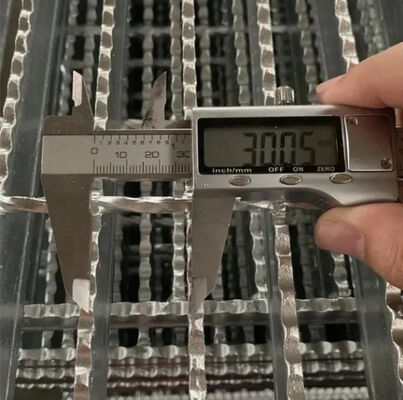

Close-up detail of serrated steel grating anti-slip surface

Note: All specifications can be customized according to project requirements. Contact us for detailed technical consultation and pricing.

Product Summary

Customized Anti-slip Serrated Steel Grating This high-quality modern style stainless steel grating features serrated bearing bars for superior anti-slip performance. Engineered with scientific and rational structural design, it is ideal for applications requiring high load-bearing capacity and ...
