Hot Dip Galvanized Steel Grating Drain Cover with Customizable Size and Anti-Slip Serrated Surface

Hot Dip Galvanized Steel Grating Drain Cover with Customizable Size and Anti-Slip Serrated Surface
Hot Dip Galvanized Steel Grating Drain Cover with Customizable Size and Anti-Slip Serrated Surface Hot Dip Galvanized Steel Grating Drain Cover with Customizable Size and Anti-Slip Serrated Surface Hot Dip Galvanized Steel Grating Drain Cover with Customizable Size and Anti-Slip Serrated Surface Hot Dip Galvanized Steel Grating Drain Cover with Customizable Size and Anti-Slip Serrated Surface

Large Image :  Hot Dip Galvanized Steel Grating Drain Cover with Customizable Size and Anti-Slip Serrated Surface

Product Details:
Brand Name: Gnee
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Packaging Details: Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Delivery Time: Shipped in 20 days after payment
Supply Ability: 300000 Square Meter/Square Meters per Month
Contact Now

Hot Dip Galvanized Steel Grating Drain Cover with Customizable Size and Anti-Slip Serrated Surface

Description
Highlight:

Hot Dip Galvanized Steel Grating

,

Customizable Size Drain Cover

,

Anti-Slip Serrated Trench Cover

Hot Dip Galvanized Steel Grating
Also known as steel grid plate or steel grille, this heavy-duty grating is manufactured by welding flat steel bearing bars with cross bars at precise spacing intervals. Ideal for drainage covers, trench covers, structural platforms, and stair treads.
Key Features & Benefits
  • Superior ventilation and lighting properties
  • Excellent heat dissipation and anti-slip surface
  • Explosion-resistant construction
  • Hot dip galvanized for oxidation protection
  • Available in carbon steel or stainless steel options
Material Specifications
Product Name Customized Anti-slip Serrated Steel Grating
Material Options Mild Steel (Low Carbon Steel), S235, S275JR, A36, or Stainless Steel SS304, SS316
Surface Treatment Hot dipped galvanized, polished or untreated
Grate Size Customized to customer requirements
Technical Dimensions
Bearing Bar Width x Thickness 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5,...75x10mm
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm
US standard: 1"x3/16", 1¼"x3/16", 1½"x3/16", 1"x¼", 1¼"×¼", 1½"x¼"
Cross Bar Pitch 38, 50, 76, 100, 101.6mm or custom
Standard Product Specifications
Pitch of Bearing Bar Cross-bar Pitch Bearing Bar Specifications (width x thickness)
30 100 G203/30/100, G253/30/100, G323/30/100, G403/30/100, G205/30/100, G255/30/100
50 G203/30/50, G253/30/50, G323/30/50, G403/30/50, G205/30/50, G255/30/50
40 100 G203/40/100, G253/40/100, G323/40/100, G403/40/100, G205/40/100, G255/40/100
50 G203/40/50, G253/40/50, G323/40/50, G403/40/50, G205/40/50, G255/40/50
60 50 G253/60/50, G403/60/50, G205/60/50, G255/60/50
Pitch of Bearing Bar Cross-bar Pitch Bearing Bar Specifications (width x thickness)
30 100 G325/30/100, G405/30/100, G455/30/100, G505/30/100, G555/30/100, G605/30/100
50 G325/30/50, G405/30/50, G455/30/50, G505/30/50, G555/30/50, G605/30/50
40 100 G325/40/100, G405/40/100, G455/40/100, G505/40/100, G555/40/100, G605/40/100
50 G325/40/50, G405/40/50, G455/40/50, G505/40/50, G555/40/50, G605/40/50
60 50 G325/60/50, G405/60/50, G455/60/50, G505/60/50, G555/60/50, G605/60/50

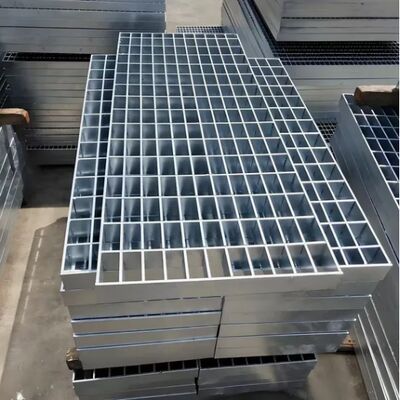

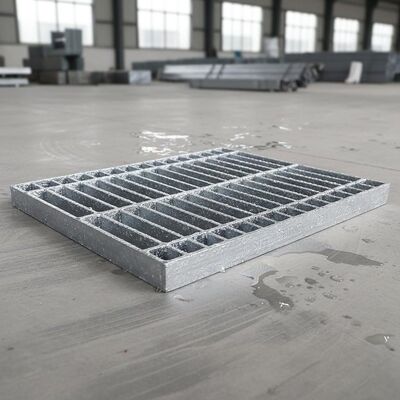

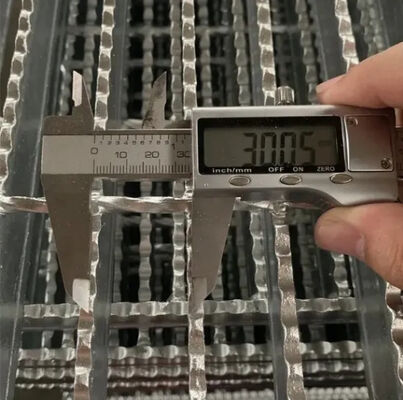

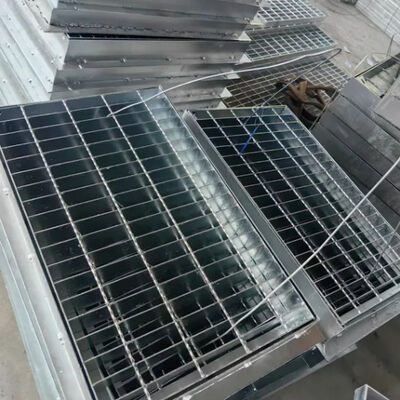

Product Images
Hot Dip Galvanized Steel Grating Drain Cover with Customizable Size and Anti-Slip Serrated Surface 0 Hot Dip Galvanized Steel Grating Drain Cover with Customizable Size and Anti-Slip Serrated Surface 1 Hot Dip Galvanized Steel Grating Drain Cover with Customizable Size and Anti-Slip Serrated Surface 2

Tag:

metal driveway drainage grates,

floor trough drain grates,

floor drain grate covers
