Heavy Duty 19W4 Galvanized Steel Bar Grating for Walkway Platforms and Drain Covers

Heavy Duty 19W4 Galvanized Steel Bar Grating for Walkway Platforms and Drain Covers
Heavy Duty 19W4 Galvanized Steel Bar Grating for Walkway Platforms and Drain Covers Heavy Duty 19W4 Galvanized Steel Bar Grating for Walkway Platforms and Drain Covers Heavy Duty 19W4 Galvanized Steel Bar Grating for Walkway Platforms and Drain Covers Heavy Duty 19W4 Galvanized Steel Bar Grating for Walkway Platforms and Drain Covers

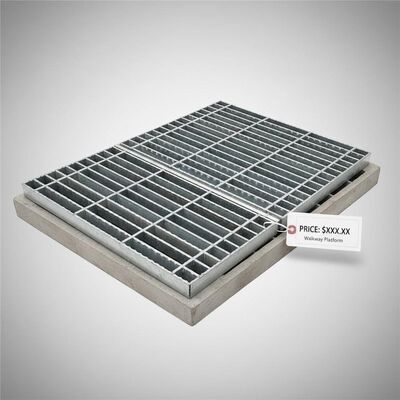

Large Image :  Heavy Duty 19W4 Galvanized Steel Bar Grating for Walkway Platforms and Drain Covers

Product Details:
Brand Name: Gnee
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Packaging Details: Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Delivery Time: Shipped in 20 days after payment
Supply Ability: 300000 Square Meter/Square Meters per Month
Contact Now

Heavy Duty 19W4 Galvanized Steel Bar Grating for Walkway Platforms and Drain Covers

Description
Highlight:

Heavy Duty Steel Bar Grating

,

Galvanized Steel Bar Grating

,

19W4 Metal Grating

Heavy Duty 19W4 Steel Bar Grating
Premium steel bar grating featuring exceptional strength and durable construction, available in aluminum, galvanized steel, and stainless steel variants. Ideal for catwalk deck flooring, trench covers, and industrial walkway platforms.
Product Overview
Engineered steel bar grating combines high strength with robust structural integrity, manufactured from carbon steel, aluminum, or stainless steel. Available in multiple production methods including welded, press-locked, swage-locked, and riveted configurations. Surface options include smooth and serrated patterns for enhanced safety and performance.
Applications
Versatile steel gratings serve numerous industrial applications including stair treads, walkways, platforms, flooring systems, drainage covers, wheeled equipment pathways, security screens, and heavy-duty construction projects.
Technical Specifications
Span Total span measurement
Width Panel width dimensions
Bearing Bars Primary load-carrying structural elements
Bearing Bars Spacing Center-to-center measurement in 1/16″ increments. Standard industrial spacing: 19/16″ (1-3/16″). Additional options: 15/16″, 11/16″, 1/2″, and 7/16″
Bearing Bars Depth Range: 3/4″ to 7″ (dependent on load requirements)
Bearing Bars Thickness Range: 1/8″ to 1/2″ (dependent on load requirements)
Cross Bars Structural components securing bearing bar positioning
Cross Bar Spacing Center-to-center measurement in 1″ increments. Standard spacing: 4″ or 2″ on center
Galvanized Steel Grating
Premium galvanized steel grating provides optimal corrosion resistance for wet, slippery environments. Manufactured using hot-dip galvanization with 99.95% pure zinc coating, compliant with international standards including IS-3202/IS-4759/IS-2629/IS-2633/IS-6745 and ASTM-A-123.
Material Specifications
Material: Carbon steel
Surface Treatment: Hot-dipped galvanized
Available Widths: 2' or 3'
Available Lengths: 20' or 24'
Grades: Grade 2 (Medium) or Grade 3 (Coarse)
Duty Options: Light duty and heavy duty
Construction Methods: Welded, press-locked, swaged lock, or flush mount
Key Features & Benefits
  • Custom fabrication available to meet project specifications
  • Exceptional load-bearing capabilities for industrial applications
  • Superior ventilation for air, light, and sound transmission
  • Non-accumulation design prevents liquid and debris buildup
  • Extended service life with minimal maintenance requirements
  • Comprehensive range of open area options
  • Enhanced safety surface superior to standard serrated and plain grating
  • Multiple style and spacing configurations for diverse applications
  • Anti-theft hinge design between cover and frame for security and accessibility
  • High strength-to-weight ratio suitable for terminals, airports, and heavy-load conditions
Heavy Duty 19W4 Galvanized Steel Bar Grating for Walkway Platforms and Drain Covers 0
Heavy Duty 19W4 Galvanized Steel Bar Grating for Walkway Platforms and Drain Covers 1

Tag:

heavy duty steel grating,

steel catwalk grating,

stainless steel bar grating
