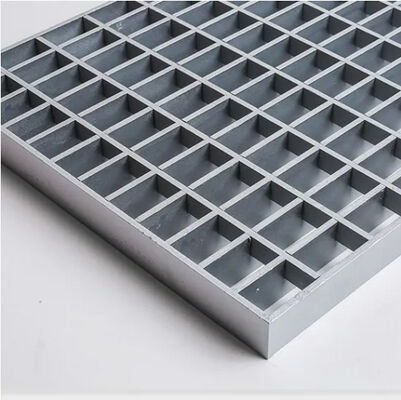

Anti-Slip Multipurpose 304 316 Stainless Steel Bar Grating for Industrial Safety

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Anti-Slip Stainless Steel Bar Grating

304 316 Stainless Steel Grating

Multipurpose Metal Grating

Product Description

Good Quality Anti-Slip Multipurpose 304 316 Stainless Steel Bar Grating

The Grating Stanchions Railing System with Ball Joint Handrails is an advanced, integrated safety solution engineered specifically for use with steel and safety grating platforms, walkways, and stair treads. This system combines robust structural support with sleek, modern aesthetics, offering superior fall protection and enhanced user safety in industrial, commercial, and public environments. The ball joint design ensures smooth connections, durability, and a professional appearance, making it an ideal choice for applications where both safety and visual appeal are prioritized.

Stainless steel bar grating installation showing ball joint railing system

Close-up view of ball joint connections and grating mounting details

Key Features

Ball Joint Design - Patented ball joint connections provide flexibility, ease of installation, and a seamless, rounded finish that eliminates sharp edges and reduces injury risks.
Grating-Specific Mounting - Base plates and stanchions are designed for direct, secure attachment to steel grating surfaces without the need for additional reinforcement or complex welding.
High Load-Bearing Capacity - Engineered to meet or exceed OSHA, EN ISO 14122, and other international safety standards for handrail loading (typically 200 lbs concentrated load).
Modular & Adjustable - Prefabricated components allow for quick assembly and adaptability to various grating layouts, heights, and angles.
Low Maintenance & Corrosion Resistant - Available in hot-dip galvanized steel, stainless steel, or powder-coated finishes for long-lasting performance in harsh environments.

Technical Specifications

Component	Material Options	Standard Specifications	Custom Options
Stanchions (Posts)	Carbon Steel (HDG), Stainless Steel (304/316)	Height: 42" (1067mm) standard; diameters: 1.5" - 2.5" OD	Custom heights, diameters, and laser-cut logos
Ball Joints	Forged Steel, Stainless Steel	Ball diameter: 2" - 3"; integrated weld-free clamp design	Color-matched powder coating, anti-slip texture
Handrails	Round, oval, or square tubing	1.5" - 2" OD; length: 6' - 20' standard	Pre-drilled ends, bent sections, custom radii
Base Plates	Steel plate, cast iron	4"×4" to 6"×6"; thickness: 1/4" - 1/2"	Slotted holes for adjustability, non-skip grating mounts
Mounting Hardware	Stainless steel or zinc-plated	T-bolts, grating clamps, anchor bolts	Security fasteners, quick-release pins
Infill Options	Vertical pickets, mid-rails, mesh panels	Pickets: 1/2" OD, spacing ≤ 4"	Cable systems, glass panels, perforated screens

Technical diagram of grating stanchions railing system components

Product Summary

Good Quality Anti-Slip Multipurpose 304 316 Stainless Steel Bar Grating The Grating Stanchions Railing System with Ball Joint Handrails is an advanced, integrated safety solution engineered specifically for use with steel and safety grating platforms, walkways, and stair treads. This system combines ...
