Heel Guard Mini Mesh Stainless Steel Bar Grating with Passivation Finish

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Mini Mesh Stainless Steel Grating

Passivation Finish Bar Grating

Heel Guard Metal Grating

Product Description

Heel Guard Mini Mesh Plain Stainless Steel Bar Grating with Passivation Finish

Galvanized steel gratings are widely used in most general industrial and commercial buildings, serving applications such as sidewalks, platforms, safety barriers, drains, and ventilation gratings.

Product Specifications

No	Item	Description
1	Bearing Bar	25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5,...75x10mm
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4" etc.
3	Cross Bar Pitch	38, 50, 76, 100, 101.6mm
4	Material	Q235, A36, SS304
5	Surface Treatment	Black, hot dipped galvanizing, paint
6	Standard	China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985

International Standards Compliance

Country	Bar Grating Standard	Steel	Hot-dip Galvanizing
P.R. China	YB/T 4001.1-2019	GB/T700-2006	GB/T13912-2002
U.S.A.	ANSI NAAMM MBG 531-00	ASTM (A36)	ASTM A123
U.K.	BS 4592-1987	BS4360(43A)	BS729
Australia	AS 1657-1985	AS3697	AS 1650
Europe	EN 1090	EN 10025:1993	EN ISO 1461-1999

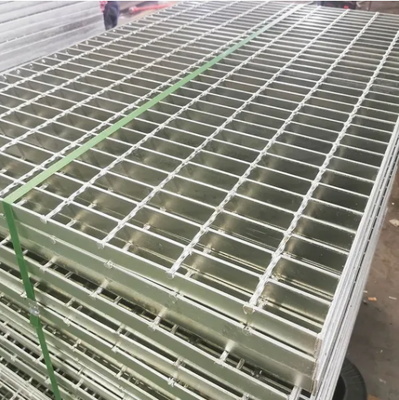

Heel Guard Mini Mesh Stainless Steel Bar Grating product view

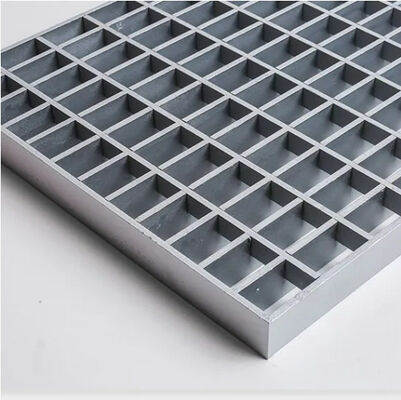

Close-up detail of stainless steel bar grating construction

Product Summary

Heel Guard Mini Mesh Plain Stainless Steel Bar Grating with Passivation Finish Galvanized steel gratings are widely used in most general industrial and commercial buildings, serving applications such as sidewalks, platforms, safety barriers, drains, and ventilation gratings. Product Specifications ...
