Polish Serrated Surface Standard Stainless Steel Bar Grating with Customizable Sizes for Industrial Use

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Polish Serrated Surface Bar Grating

Standard Stainless Steel Grating

Customizable Sizes Steel Grating

Product Description

Polish Serrated Surface Standard Stainless Steel Bar Grating

Stainless steel grating is regarded as industrial grade bar grating, which is extremely strong, durable, and corrosive resistant for all load-bearing applications. It is primarily used for pedestrian and light vehicle traffic in hotel and commercial settings.

Product Specifications

Available Materials

Q235 / Stainless Steel / Aluminium / Carbon Steel / Low-carbon Steel

Material Standards

ASTM A36, A1011, A569, Q235, S275JR
Stainless Steel 304/316
Mild Steel & Low Carbon Steel

Bar Types

Bearing Bar: Flat Bar / I Bar / Serrated Bar
Crossbar: Twisted Bar / Round Bar / Flat Bar

Surface Treatments

Untreated (Black)
Hot-dipped Galvanized
Powder-coated
Electroplated
Painting
Custom treatments available per customer requirements

Grating Styles

Plain / Smooth
Serrated / Teeth
I Bar
Serrated I Bar

Galvanizing Standards

China: GB/T13912
USA: ASTM (A123)
UK: BS729

International Standards

China: YB/T 4001.1-2007
USA: ANSI/NAAMM (MBG531-88)
UK: BS4592-1987
Australia: AS 1657-1988
Japan: JJS

Customization Available: Special materials, high zinc coating, and new styles can be customized according to your requirements.

Technical Specifications

Bearing Bar Size: 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5

Bearing Bar Pitch	Crossbar Pitch	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
60	50	/	G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50

Bearing Bar Size: 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5

Bearing Bar Pitch	Crossbar Pitch	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Applications

Our stainless steel bar grating is widely used in various industrial and commercial applications including:

Flooring, Catwalks, and Mezzanines/Decking
Stair Treads and Ramps
Fencing and Dock Applications
Trench Covers and Drainage Pit Covers
Maintenance Platforms and Pedestrian Areas
Factory and Workshop Flooring
Motor Rooms and Trolley Channels
Heavy Loading Areas and Boiler Equipment
Heavy Equipment Areas

We are a professional factory that designs and manufactures standard steel grating and provides custom solutions according to client requirements.

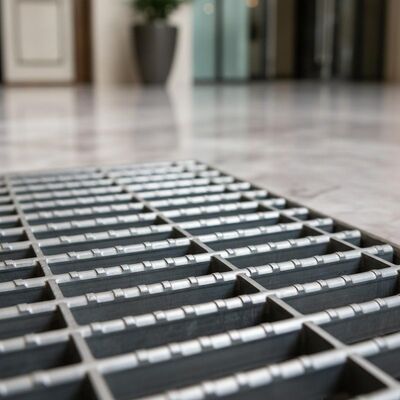

Stainless steel bar grating installation in commercial setting

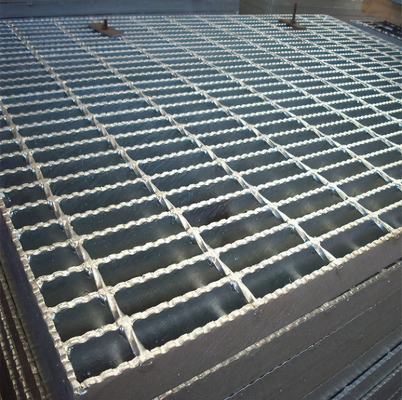

Close-up view of serrated surface steel grating

Steel grating applications in industrial environment

Product Summary

Polish Serrated Surface Standard Stainless Steel Bar Grating Stainless steel grating is regarded as industrial grade bar grating, which is extremely strong, durable, and corrosive resistant for all load-bearing applications. It is primarily used for pedestrian and light vehicle traffic in hotel and ...
