ANSI Standard Stainless Steel Heavy-Duty Stair Tread Grating for Industrial Safety

Customer Reviews
My grate came today and it fit perfectly. Thank you. Let me know if there is anywhere that I can leave positive feedback about your company!

—— Andrew Mullen

I'm Online Chat Now

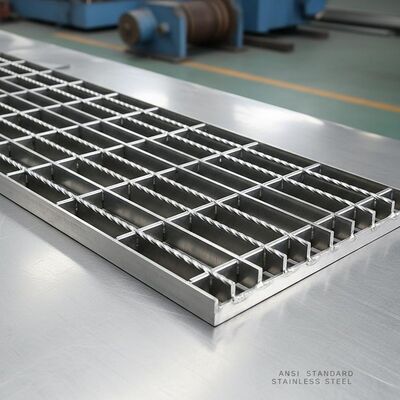

ANSI Standard Stainless Steel Heavy-Duty Stair Tread Grating for Industrial Safety

ANSI Standard Stainless Steel Heavy-Duty Stair Tread Grating for Industrial Safety
ANSI Standard Stainless Steel Heavy-Duty Stair Tread Grating for Industrial Safety ANSI Standard Stainless Steel Heavy-Duty Stair Tread Grating for Industrial Safety ANSI Standard Stainless Steel Heavy-Duty Stair Tread Grating for Industrial Safety ANSI Standard Stainless Steel Heavy-Duty Stair Tread Grating for Industrial Safety ANSI Standard Stainless Steel Heavy-Duty Stair Tread Grating for Industrial Safety

Large Image :  ANSI Standard Stainless Steel Heavy-Duty Stair Tread Grating for Industrial Safety

Product Details:
Place of Origin: Henan
Brand Name: Gnee
Certification: SGS
Payment & Shipping Terms:
Packaging Details: Standard Sea Worthy Package
Supply Ability: 10000 Ton/Tons per Month

ANSI Standard Stainless Steel Heavy-Duty Stair Tread Grating for Industrial Safety

Description

Professional ANSI Standard Stainless Steel Press Welded Grating Heavy-Duty Durable
Stair Tread Steel Grating is a specialized structural safety product engineered specifically for stair and step applications. It combines the high strength, excellent ventilation, and drainage properties of standard steel grating with the anti-slip and safety requirements essential for stair treads. This product is the ideal choice for staircase systems in industrial facilities, commercial buildings, and public infrastructure. It effectively prevents slips and falls, ensuring the safety of personnel while ascending or descending stairs, and boasts exceptional durability, ease of installation, and low maintenance requirements.
ANSI Standard Stainless Steel Heavy-Duty Stair Tread Grating for Industrial Safety 0
Technical Specifications
Parameter Specification Options Standard / Notes
Primary Material Mild Steel (Hot-Dip Galvanized), Stainless Steel (304/316), Aluminum Alloy Galvanized steel is the standard for economy & durability
Tread Type Serrated Bar Grating, Checker Plate Composite Grating, Full Serrated Surface Serrated grating offers optimal anti-slip properties
Standard Tread Depth 225mm, 250mm, 280mm, 300mm Custom depths available
Standard Tread Width 700mm, 800mm, 900mm, 1000mm, 1200mm Customized based on stair width
Bearing Bar Thickness 3mm, 4mm, 5mm, 6mm Selected based on span and load requirements
Surface Treatment Hot-Dip Galvanized (Standard), Epoxy Coating, Non-Slip Grit Coating, Stainless Steel Mill Finish Standard galvanizing ≥70μm
Optional Accessories Anti-Slip Nosing (Yellow/Black or Red/White), End Closure Bars, Kick Plates, Installation Clips Enhance safety and aesthetics
Load Standards Complies with ANSI/NAAMM MBG 531, OSHA, EN ISO 14122-3 Load calculation sheets available upon request
Note: All dimensions, materials, and finishes can be customized per project requirements.
Industry Applications
  • Water Treatment: Walkways, trench covers - plain steel grating is easy to clean for humid environments
  • Chemical Plants: Stair treads, platforms - galvanized steel grating resists chemical corrosion
  • Power Plants: Trench covers - heavy duty grating provides stable load-bearing
  • Industrial Factories: Floors, walkways - plain steel grating is smooth and safe
  • Construction: Stair treads, floor gratings - customizable size/material
  • Seafood Plants: Anti-corrosion floors - galvanized surface resists saltwater

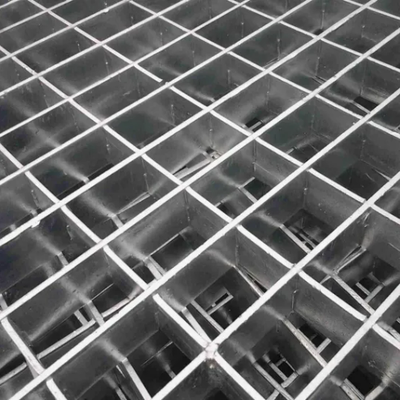

ANSI Standard Stainless Steel Heavy-Duty Stair Tread Grating for Industrial Safety 1
