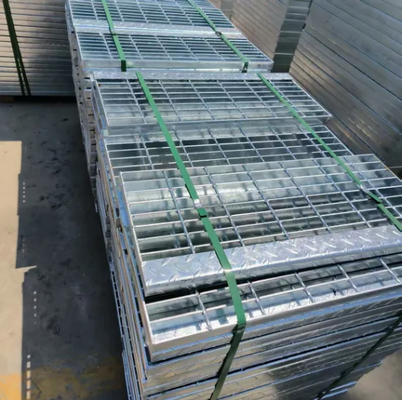

Stainless Steel Galvanized Drainage Gutter with Serrated Type Bar Grating for Industrial Use
Basic Properties
Place of Origin:
Henan
Brand Name:
GNEE
Certification:
SGS
Trading Properties
Minimum Order Quantity:
Negotiation
Price:
Negotiation
Supply Ability:
300000 Square Meter/Square Meters per Month
Product Summary
Drainage Gutter with Stainless Steel Grating Cover Galvanized Steel Grating What Is Steel Grating? Steel grating, also known as steel grid or bar grating, is a versatile and robust flooring solution designed for industrial, commercial, and architectural applications. Made from high-quality carbon or ...
Product Description
Drainage Gutter with Stainless Steel Grating Cover Galvanized Steel Grating
What Is Steel Grating?
Steel grating, also known as steel grid or bar grating, is a versatile and robust flooring solution designed for industrial, commercial, and architectural applications. Made from high-quality carbon or stainless steel, our steel grating features a lightweight yet durable design that ensures excellent load-bearing capacity and long-lasting performance.
Steel Grating Types
- Plain Type: One of the most widely used gratings, available for flooring, sidewalk, drainage pit cover, stair tread, etc.
- Serrated Type: Better non-skid property and safety compared with plain grating.
- I Bar Type: Lighter, more economical, and practical compared with plain grating.
Steel Grating Specifications
| Load Bearing Flat Bar Size | Thickness ≥ 3mm, depth ≥ 19mm 19×3, 19×5, 20×3, 20×5, 25×3, 25×4, 25×4.5, 25×4.7, 25×5...40×6, 40×8, 40×10...90×6... |
|---|---|
| Pitch of Load Bearing Flat Bars (mm) | 12.5, 15, 20, 30, 30.6, 32.5, 34, 34.8, 35.3, 40, 60, 80... |
| Pitch of Cross Bars (mm) | 38.1, 50, 50.8, 70, 75, 80, 99, 100, 101.6, 102... |
Steel Grating Standards
| Country | Steel Grating Standard | Steel Material Standard | Hot Galvanizing Standard |
|---|---|---|---|
| China | YB/T4001-1998 | GB 700-88 | GB/T13912-2002 |
| USA | ANSI/NAAMM (MBG531-88) | ASTM (A36) | ASTM (A123) |
| England | BS4592-1987 | BS4360 (43A) | BS729 |
| Australia | AS1657-1992 | AS3679 | AS1650 |
Detailed Technical Information
| No. | Item | Description |
|---|---|---|
| 1 | Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm etc. I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. US Standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8", etc. |
| 2 | Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm, etc. US Standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| 3 | Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc. |
| 4 | Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc. |
| 5 | Surface Treatment | Black, self-color, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain/Smooth, Serrated/Teeth, I bar, serrated I bar |
Surface Treatment
Frequently Asked Questions
Are there standards for steel grating?
Yes, such as ASTM A36/A1011 for carbon steel and ASTM A123 for galvanizing.
Can steel grating handle impact loads?
Yes, steel grating is strong and durable, suitable for heavy industrial use.
What is serrated steel grating?
Serrated grating has a textured surface for better traction and anti-slip performance.
Is steel grating suitable for pedestrian traffic?
Yes, with proper design and spacing, it is safe for walkways and stairs.
Can steel grating be used in high-temperature areas?
Yes, steel grating can withstand high temperatures, making it suitable for industrial plants.
