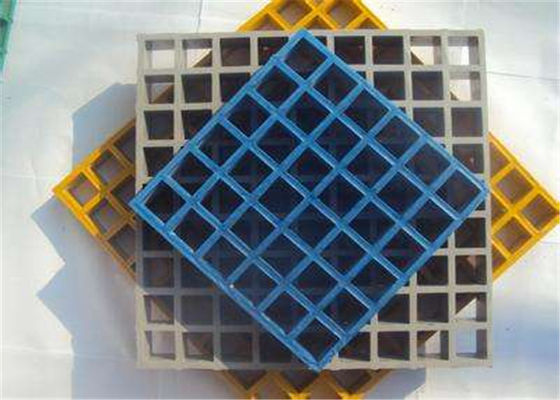

High Strength Chemical Resistant FRP Grating with Colorful Surface for Industrial Flooring
Basic Properties
Brand Name:
GNEE
Certification:
ISO9001
Model Number:
frp floor grating
Trading Properties
Minimum Order Quantity:
10000 square meters per month
Payment Terms:
T/T,Western Union
Product Summary
FRP Colorful Plastic Floor Grating High Strength Chemical Resistant Product Overview 38 × 38 × 38, 50 × 50 × 50 FRP Grating Colorful Surface Floor Grating FRP grating is a new composite material made of different resins reinforced with fiberglass using molded technology. It is widely used in ...
Product Details
Highlight:
frp molded grating
,checker plate flooring
Product Name:
38 × 38 × 38 , 50 × 50 × 50 Frp Grating Colorful Surface Floor Grating
Feature:
Light Structure And High Strength
Maintance:
Easy Cleaning
Application:
Platform, Floor,trench Cover,stairs
Length:
1007x4007,1207x4047,etc
Width:
3007mm,3660mm,4047mm
Color:
Black\gray\white\yellow\red\green
Technique:
Molded
Product Description
FRP Colorful Plastic Floor Grating High Strength Chemical Resistant
Product Overview
38 × 38 × 38, 50 × 50 × 50 FRP Grating Colorful Surface Floor Grating

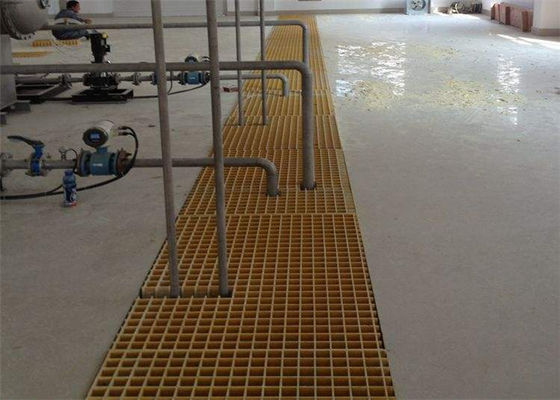

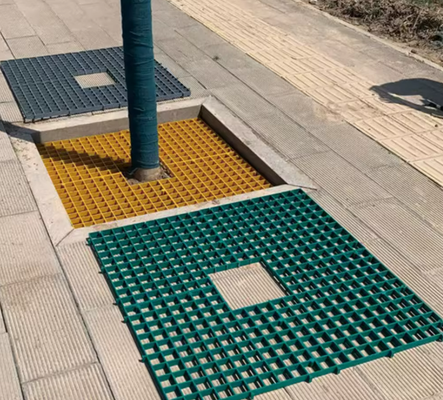

FRP grating is a new composite material made of different resins reinforced with fiberglass using molded technology. It is widely used in operation platforms, checking and repairing walkways, drilling platforms, terraces, stair steps, equipment walkways, trench covers, pedestrian overpasses, filler supports, ship decks, falsework, ventilation fences, rails, and corrosion resistance shelves.
Design Specifications

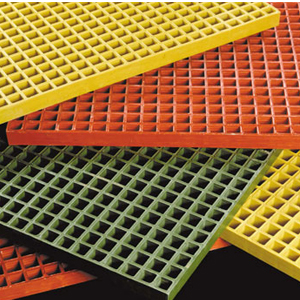

Regularly molded GRP gratings have a polyester resin matrix with approximately 35% glass content. Standard colors include green, yellow, or grey, with other colors available according to RAL specifications.
| Item No. | Height (mm) | Mesh Size (mm) | Standard Panel Sizes (mm) | Bar Thickness (top/bottom-mm) | Open Area | Weight (kg/m²) |
|---|---|---|---|---|---|---|
| 1 | 13 | 50.8×50.8 | 3660×1220 | 6.4 / 5.4 | 76% | 5.5 |
| 2 | 15 | 25.4×25.4 / 50.8×50.8 | 3660×1220 | 6.2 / 5 | 57% | 7.2 |
| 3 | 15 | 38.1×38.1 | 3660×1225 | 6.3 / 5.2 | 69% | 6.5 |
| 4 | 15 | 20×20 / 40×40 | 4047×1247 | 6.35 / 5.3 | 47% | 11.5 |
| 5 | 20 | 38.1×38.1 | 3665×1225 | 6.3 / 5 | 69% | 9.3 |
| 6 | 20 | 12.8×12.8×12.8 / 38.5×38.5 | 3434×970 | 7.2 / 6.4 | 27% | 18.5 |
| 7 | 25 | 38.1×38.1 | 3665×1225 | 6.35 / 5 | 69% | 12.3 |
| 8 | 25 | 40×40 | 4047×1007 | 6.35 / 5 | 70% | 12.2 |
| 9 | 25 | 19×19 / 38×38 | 4005×1220 | 6.4 / 5 | 44% | 15.5 |
| 10 | 25 | 25×100 (Bearing bars width direction) | 3007×1009 | 9.4 / 8 (length) 6.4 / 5 (width) | 67% | 13.8 |
| 11 | 25 | 25.4×101.6 (Bearing bars width direction) | 3660×1220 | 7 / 5 | 67% | 13 |
| 12 | 25 | 101.6×25.4 (Bearing bars length direction) | 3665×1225 | 7 / 5 | 67% | 13.1 |
| 13 | 30 | 38.1×38.1 | 4008×1525 | 6.6 / 5 | 68% | 14.6 |
| 14 | 30 | 40×40 | 4047×1007 | 6.6 / 5 | 69% | 14.2 |
| 15 | 30 | 20×20 / 40×40 | 4047×1247 | 7 / 5 | 42% | 18.1 |
| 16 | 30 | 12.7×12.7×12.7 / 38×38 | 4040×1220 | 7 / 5 | 30% | 23.5 |
| 17 | 30 | 26×26 / 52×52 | 4011×1150 | 6.5 / 5 | 56% | 13.6 |
| 18 | 38 | 38.1×38.1 | 3969×1525 | 7 / 5 | 66% | 19.2 |
| 19 | 38 | 40×40 | 4047×1007 | 7 / 5 | 67% | 18.8 |
| 20 | 38 | 152.4×25.4 (Bearing bars length direction) | 3665×1226 | 7 / 5 (length) 9 / 7 (width) | 68% | 20.4 |
| 21 | 38 | 101.6×38.1 (Bearing bars length direction) | 3660×1220 | 7 / 5 | 76% | 14.5 |
| 22 | 38 | 19×19 / 38.1×38.1 | 4045×1220 | 7 / 5 | 40% | 23.5 |
| 23 | 38 | 20×20 / 40×40 | 4047×1247 | 7 / 5 | 42% | 22 |
| 24 | 40 | 40×40 | 4047×1247 | 7 / 5 | 67% | 20 |
| 25 | 40 | 220×60 | 2207×1507 | 7 / 5 | 85% | 9.5 |
| 26 | 40 | 20×20 / 40×40 | 4047×1207 | 7 / 5 | 42% | 23.7 |
| 27 | 50 | 50.7×50.7 | 3660×1225 | 8.3 / 5 | 69% | 21.5 |
| 28 | 50 | 50.7×50.7 | 3660×1225 | 8.8 / 5 | 68% | 23.5 |
| 29 | 50 | 25.35×25.35 / 50.7×50.7 | 3660×1220 | 8 / 6 | 47% | 26 |
| 30 | 50 | 152.4×38.1 (Bearing bars length direction) | 3660×1220 | 9 / 7 | 72% | 20.8 |
| 31 | 50 | 38.1×38.1 | 3665×1225 | 11.5 / 9 | 48% | 40.5 |
| 32 | 63 | 38.1×38.1 | 3660×1220 | 9 / 5.8 | 58% | 38.5 |
| 33 | 63 | 38.1×38.1 | 3670×1230 | 12 / 9 | 46% | 52 |
Applications
- Walkways
- Platforms
- Protective Shielding
- Machinery Housings
- Raised Floors
- Stairways
Key Characteristics
- Corrosion and chemical resistant
- High strength-to-weight ratio
- Ergonomic design
- Slip-resistant surface
- Anti-aging properties
- Easy maintenance
Frequently Asked Questions
What is steel grating?
Steel grating is a structural platform made from steel bars welded or pressed together to form a grid.
What types of steel grating are available?
Common types include welded, press-locked, and serrated steel grating.
What materials are used for steel grating?
Typically carbon steel, galvanized steel, stainless steel, or aluminum.
What is the load capacity of steel grating?
Load capacity depends on bar size, spacing, and grating type; it can be designed to carry light to heavy industrial loads.
Can steel grating be customized?
Yes, grating can be cut, shaped, and fabricated to fit specific dimensions and applications.
What are the common surface finishes?
Plain, hot-dip galvanized, electro-galvanized, painted, or powder-coated.
Where is steel grating commonly used?
Used in walkways, platforms, stair treads, drainage covers, industrial flooring, and catwalks.
