|Material:||Stainless Steel||Cross Bar Spacing:||50mm,100mm Or Customized|
|Bearing Bar Shape:||Plain Style, Serrated Style, I Section Style||Cross Bar:||Twisted Bar,Round Bar|
|Standard:||ANSI/NAAMM（MBG531-88）||Application:||Flooring,Stair Tread,Ditch Cover|
steel catwalk grating,
heavy duty steel grating

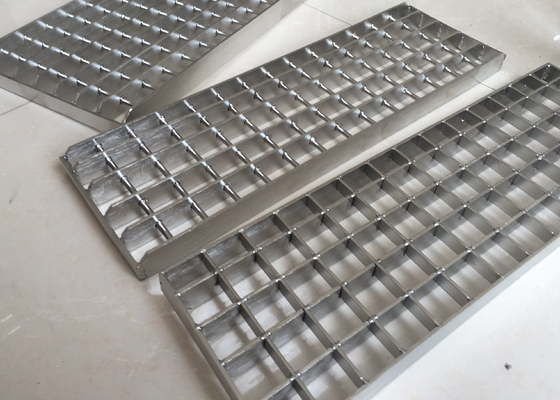

Customized stainless steel grating walkway flooring 304 / 316

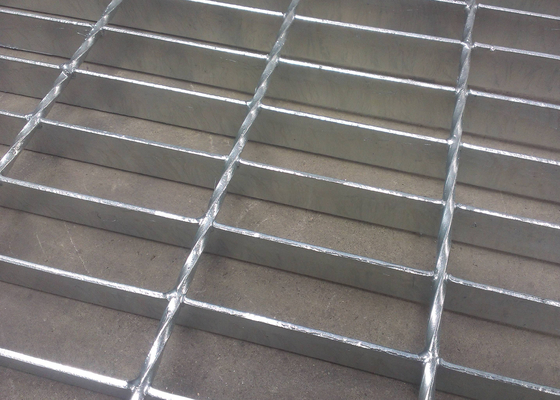

1. Description:Steel Bar Gratings are manufactured with the world’s first-class computer-controlled pressure resistance welding machine by electro-forging the twisted square-steel into flat steel.Steel Bar Gratings are classified into three styles,namely plain style,serrated and I style as per the upper edges of bearing bars .More than 200 varieties are available based on specifications and spacing of bearing bars ,and that of cross roda.Different protective treatment can be made on the surface as environment varies.
steel bar grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed :
bearing bar height
bearing bar thickness
bearing bar pitch
cross bar pitch
|Bearing Bars||Cross Bars||Type 19-W-4||Type 19-W-2||Type 15-W-4||Type 15-W-2|
|3/4 x 1/8||1/4||3.99||4.63||4.95||5.59|
|3/4 x 316||1/4||5.67||6.31||7.11||7.75|
|1 x 1/8||1/4||5.15||5.79||6.44||7.08|
|1 x 3/16||1/4||7.35||7.99||9.27||9.91|
|1-1/4 x 1/8||1/4||6.20||6.84||7.79||8.43|
|1-1/4 x 3/16||1/4||9.03||9.67||11.43||12.07|
|1-1/2 x 1/8||1/4||7.35||7.99||9.27||9.91|
|1-1/2 x 3/16||5/16||10.94||11.80||13.82||14.68|
|1-3/4 x 3/16||5/16||12.62||13.48||15.98||16.84|
|2 x 3/16||5/16||14.30||15.16||18.14||19.00|
|2-1/4 x 3/16||5/16||15.87||16.74||20.16||21.03|
1.Attractive appearance:Simple outline.silver colour,and modern.
2.Optimum water draining:Water leakage area reaches 83.3%,which is more than two times larger than that of cast iron.
3.Hot-dip galvanizing:Good antirust performance,maintenance free and replacement free.
4.Design of preventing theft:The cover is connected with the frame by gemel,which ensures protection against theft,safety,and convenient opening.
5.Saving investment:With large span,the cost is lower than that of cast iron when under heavy load.And the replacement expenses in case of theft and crushing will be saved.
6.High strength:With strength:With strength and toughness far higher than those of cast iron,it can be used in the environment with large span and heavy load,such as the wharf and the airport.
7.Many specifications available: The requirement of different environments,loads,spans,sizes and shapes can be satisfied.
