|Product Name:||25 / 5 , 32 / 5 Press Locked Steel Grating Walkway Used Galvanized||Bearing Bar Height:||25,30,32,35,40,45,50,55,60,65mm,ect|
|Bearing Bar Thickness:||2,3,5,10mm,ect||Bearing Bar Pitch:||20,25,30,32.5,34.3,40,50,60,62,65mm|
|Material:||Stainless Steel/mild Steel,Q235,stainless304/316,low Carbon Steel||Color:||Sliver,black Or Painted|
|Certification:||ISO9001||Application:||Petroleum And Chemical, Port, Power, Transportation, Papermaking, Medicine, Steel And Iron, Food, Municipality, Real Estate, Manufacturing|
press lock grating,
welded bar grating

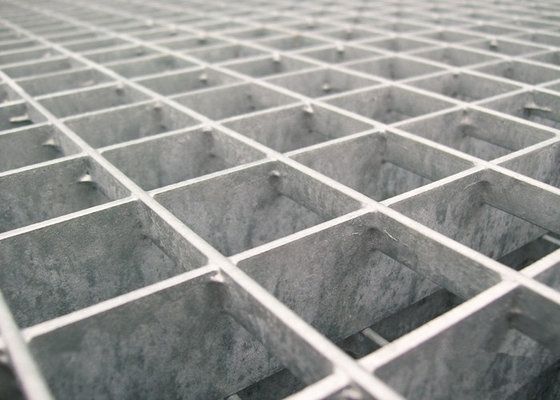

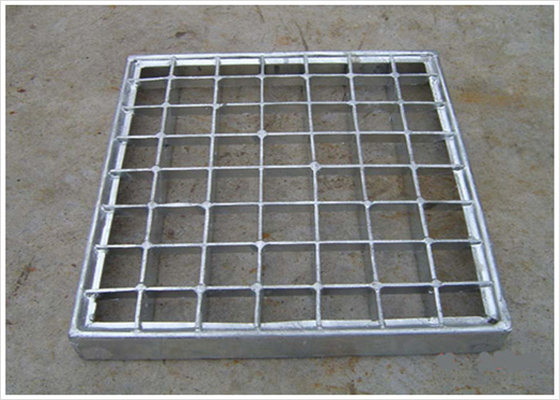

25 / 5 , 32 / 5 Press Locked Steel Grating Walkway Used Galvanized
Steel grating is widely used in the platform, corridor, bridge, well covers, stairs, fencing for petroleum,
chemical, power plant, waste treatment plant, civil engineering projects and environmental projects.
And The hot dipped zinc coating gives the product excellent anti-corrosion
|1||Material||Low carbon,middle carbon,stainless steel|
|3.||Bearing bar size|
|4.||Bearing bar pitch||15,20,25,30,33,35,38,40,50,60,80,90mm|
|5.||Cross bar pitch||24-200mm|
|6.||Surface treatment||Hot dipped galvanized,painted,self-color,|
|8.||Bearing bar type||F,I ,S,IS type|
|9.||Application||Floor walkway,industrial platform,stair tread,metal ceiling|
Fine appearance,anti-corrosive,simple installation,light weight,
|Standard for steel grid||Standard for steel material||Standard for hot dipped galvanization|
|China||YB / T4001.1 - 2007||GB700 - 88||GB / T 13912 - 2002|
|USA||ASNI / NAAMM ( MBG531 - 88 )||ASTM ( A36 )||ASTM ( A123 )|
|UK||BS4592 - 1 - 1995||BS4360 ( 43A )||BS729|
|Australia||AS1657 - 1992||AS3679||AS1650|
We have nearly 10 years of experience in manufacturing High quality Steel Grating with various sizes,We
can supply plain Type-s, Type-I, cross or composite grating according to customers’ requirements.
We warmly welcome friends from all corners of the world both at home and abroad to patronize us ,with
the promise of leading technology, superior quality, favorable price, complete varieties and thoughtful
service. We wish us cooperate successfully and create the brilliant future together!
How to order :
1. Kindly indicate the specifications,size,quantities,and required surface treatment of steel grating.
2. Give type and quantity of fastener.In principle,each piece of grating needs four sets of fasteners.
3. Please offer construction plan when big floor areas are required to cover with steel gratings.
Also provide constructional elevation drawing and joint details as well as section size and location of
supporting steel beam,
if any openings are required on such floor areas.
4. When ordering stair treads,please state out types of stair treads,and the specification,length,width,
quantity and required surface treatment for grating used.
Contact Person: admin
Product name: Hot Dip Galvanized Serrated / Plain 30 × 3 , 32 × 3 Pressure Locked Grating
Material: Stainless steel/mild steel,Q235,stainless304/316,low carbon steel
Steel standard: GB700-88,ASTM(A36),BS4360(43A),AS3679
Bearing bar size: 20*3mm,20*5mm,25*3mm,25*5mm,30*3mm,30*5mm,32*3mm,32*5mm,35*3mm,35*5mm
