Galvanized Steel Grating Drain Cover With Angle Frame Urban Road / Square Suit

Good quality Serrated Steel Grating for sales
My grate came today and it fit perfectly. Thank you. Let me know if there is anywhere that I can leave positive feedback about your company!

—— Andrew Mullen

I'm Online Chat Now

Galvanized Steel Grating Drain Cover With Angle Frame Urban Road / Square Suit

China Galvanized Steel Grating Drain Cover With Angle Frame Urban Road / Square Suit supplier
Galvanized Steel Grating Drain Cover With Angle Frame Urban Road / Square Suit supplier Galvanized Steel Grating Drain Cover With Angle Frame Urban Road / Square Suit supplier

Large Image :  Galvanized Steel Grating Drain Cover With Angle Frame Urban Road / Square Suit

Product Details:

Place of Origin: China
Brand Name: BAOSHENG
Certification: ISO9001,SGS
Model Number: TC-12

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meter
Price: USD 18 /Square meter
Packaging Details: Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Delivery Time: 5-9 working days
Supply Ability: 100 ton/week
Contact Now
Detailed Product Description
Product Name: Trench Cover Trench Cover Type: Gu Gt GM
Surface Treatment: Untreated, Painted Or Hot Dip Galvanized Size: 50cm*50cm,100cm*100cm, 30cm*80cm Or Your Request
Cross Bar Pitch: 30mm,50mm,100mm Etc Cross Bar Diameter: 5*5mm,6*6mm,8*8mm

Trench cover





Steel grating trench cover is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.



Materials:
Mild carbon steel with a variety of grades; Also customerized steel.



steel grating specification
panel size available(black grating): 1000x5800mm or 1000x6000mm



Bearing bar pitch  Cross  bar pitch  load steel size ( Width ×Thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100

50



G203/30/50 G253/30/50

G323/30/50



G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50       - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
 Bearing bar pitch  Cross   bar pitch  load steel size (Width ×Thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50



Bearing bar type Flat bar I bar Serrated bar
Cross bar type twisted bar Round bar flat bar
Production process

welded



Pressure locked




Surface treatment Self-colour

Galvanized



painted
application Platform walkway&floor Trench cover Steel stair treads
  Suspended ceiling Barrier fence



Packing: With Steel Belt In high quality pallet or as your request.



Shipping: Within 15-20 days after receiving the deposit.



Application:
It is widely used in urban roads, squares, gardens, docks, airports, car parks, highway, railways, industrial projects, other kinds of industrial constructions.

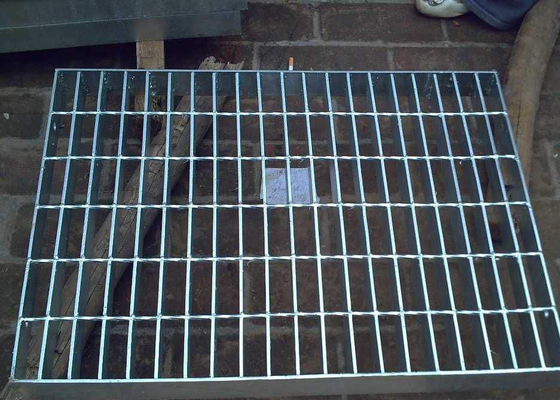

Product picture
 Galvanized Steel Grating Drain Cover With Angle Frame Urban Road / Square Suit


Company Information

Anping Baosheng Steel Grating Co., Ltd is a professional manufacturer in the field of steel grating,stair treads,trench cover,steel fence,etc.We have 3 running lines with yearly capacity of 15, 000tons.Our grating has exported to more than 30 countries,including AU,Europe,Southeast Asia,Africa,Middle East,etc.We always stick to manufacturing good quality products for our valuable customers worldwide.For sure,Anping Baosheng is your right partner for purchasing & developing quality goods in China.



FAQ

Q: Why to choose us? Any advantages?
A: The answer is Yes.
1) The most preferential price:Our offer will be reasonable, our price will be cheaper in the
same quality.
2) Customize: We can make the product as your request, specification,size and quality can meet
your request.
3) Mix order: We accept mix order, different specification and small quantity order.
4) Quality assurance:We have professional quality testing team.They will test the products before shipment.
5) After-sales service:Any question is welcome.

Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order.

Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on alibaba, please have a detailed looking and choose the interested products in our site.

Q: If I want cheaper quality, can you produce?
A: Yes, just send us your quality details, such as the material, what cheaper parts instead, etc, we will do that as your request and calculate the price.

Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the products specification,quantity and other requirements. We will make the most competitive quotation to you as soon as possible.
