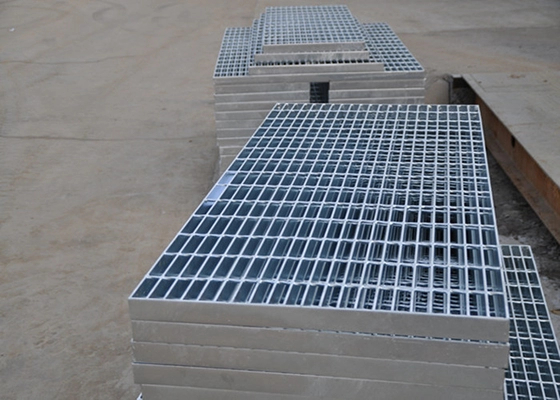

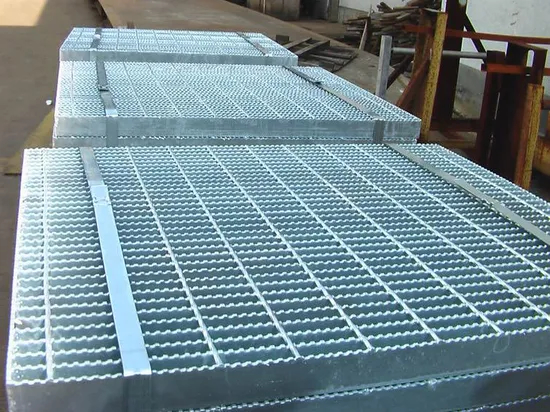

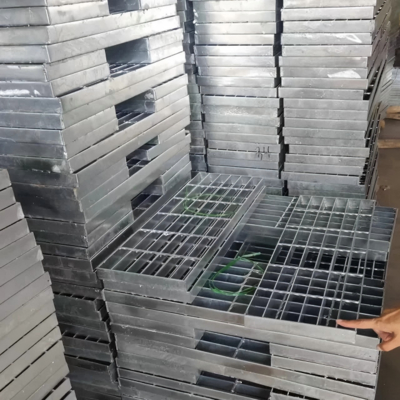

Welded Bar Grating Metal Serrated Drainage Toothed HDG Steel Serrated Floor Gratings

Large Image : Welded Bar Grating Metal Serrated Drainage Toothed HDG Steel Serrated Floor Gratings

Product Details:

Brand Name:	GNEE
Certification:	ISO9001,SGS

Payment & Shipping Terms:

Minimum Order Quantity:	10 square meter
Price:	Negotiable
Packaging Details:	Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Delivery Time:	5-9 working days
Payment Terms:	L/C, T/T
Supply Ability:	100 ton/week

Contact Now

Detailed Product Description

Product Description

APPLICATION OF STEEL GRATING:
1. Water treatment: repair walkway, trench cover board, large container, cleaning device, blocking grate, running water tank, biochemical water treatment pool pendant, ventilation window, stairs, cooling tower operation table paving surface.
2. Chemical plant: stairway board, operating platform, guardrail, double floor, trench cover board, filter grate oil
3. Industry: offshore oil platforms
4. Textile mill: replace metal grille, wooden platform and cover cement ground, next to the dye tank, floor, near the valve, etc..
5. Power plant: chemical water workshop trench cover plate, waste pool, etc..
6. Marine food processing plant: slippery surface and other harsh environment, ships.
7. Transport: platforms, ship decks, walkways, stairs.
8. Beverage industry: Staircase floor board, replacement of expensive stainless steel, loaded floor.

Welded Bar Grating Metal Serrated Drainage Toothed HDG Steel Serrated Floor Gratings 0

Item	Description
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc.
Bearing Bar Pitch	12.5, 15, 20, 25, 30, 32, 35, 38, 40, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. Noted:19-W-4 is most popular(19/16 inch x 4 inch opening=30x100mm opening)
Twisted Cross Bar Pitch	50, 60, 76, 100, 120mm etc. US standard: 2' & 4' etc.
Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
