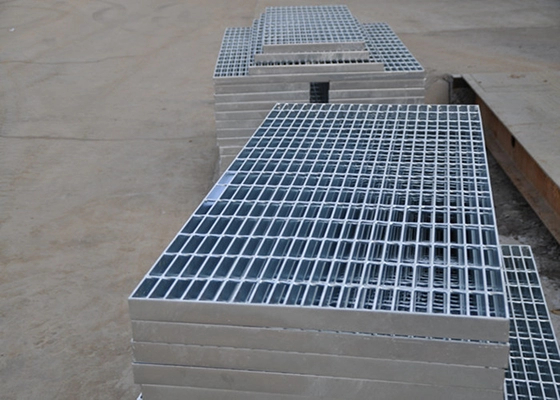

Metal Serrated Drainage Toothed HDG Steel Serrated Floor Gratings
Brand Name:GNEE
Certification:ISO9001,SGS
Minimum Order Quantity:10 square meter
Price:Negotiable
Payment Terms:L/C, T/T
Supply Ability:100 ton/week
Tags:
Product Description
Product Description
Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars or by bent connecting bars extending between them. This design is intended to hold heavy loads with minimal weight. Steel grating is widely used for floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.
|
Material standard
|
Bearing bar
|
Cross bar
|
Bearing bar pitch
|
Cross bar pitch
|
|
Q235
|
25mm*3mm
|
5mm
|
20mm
|
50mm
|
|
25mm*5mm
|
22mm
|
|||
|
30mm*3mm
|
||||
|
Q345
|
30mm*5mm
|
27mm
|
||
|
32mm*3mm
|
||||
|
32mm*5mm
|
6mm
|
30mm
|
||
|
ASTM A36
|
35mm*5mm
|
|||
|
40mm*3mm
|
31mm
|
100mm
|
||
|
40mm*5mm
|
||||
|
ASTM A1011
|
50mm*5mm
|
8mm
|
32mm
|
|
|
60mm*5mm
|
||||
|
60mm*8mm
|
34mm
|
|||
|
ss400
|
75mm*5mm
|
|||
|
75mm*8mm
|
40mm
|
- Welded mesh steel grating used as workshop floor
- Pressure Welded Steel Grating used as Stair Treads
- Metal Bar Gratings used as Walkway Mesh
- Welded steel grating gully and well cover
- Welded Steel Bar Gratings used as fence
- Welded Grille Ceiling
- Steel Grating Plasform
- Tree Cover Steel Gratings guards Trees

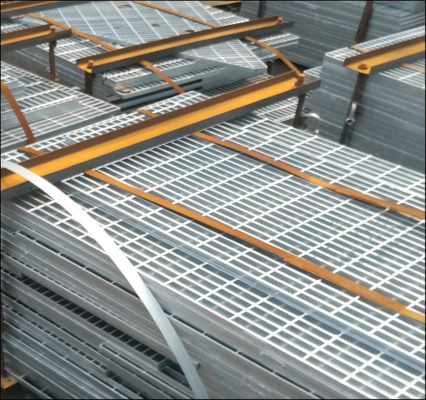

Packaging and Shipping
Product Summary
Product Description Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars or by bent connecting bars extending between them. This design is intended to ...
