HDG Steel Serrated Floor Gratings Welded Bar Grating

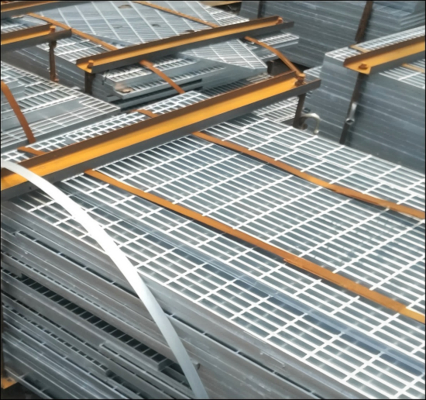

Large Image : HDG Steel Serrated Floor Gratings Welded Bar Grating

Product Details:

Brand Name:	GNEE
Certification:	ISO9001,SGS

Payment & Shipping Terms:

Minimum Order Quantity:	10 square meter
Price:	Negotiable
Packaging Details:	Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Delivery Time:	5-9 working days
Payment Terms:	L/C, T/T
Supply Ability:	100 ton/week

Contact Now

Detailed Product Description

Product Description

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars or by bent connecting bars extending between them. This design is intended to hold heavy loads with minimal weight. Steel grating is widely used for floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.

Size&Shape:Customized Size

Surface treatment: galvanized

Type: Ordinary strip grating

Usage: concrete construction support, trench cover, platform slab

Advantage: Carbon Steel / Heavy Duty / Steel

HDG Steel Serrated Floor Gratings Welded Bar Grating 0

Material standard	Bearing bar	Cross bar	Bearing bar pitch	Cross bar pitch
Q235	25mm*3mm	5mm	20mm	50mm
	25mm*5mm		22mm
	30mm*3mm
Q345	30mm*5mm		27mm
	32mm*3mm
	32mm*5mm	6mm	30mm
ASTM A36	35mm*5mm
	40mm*3mm		31mm	100mm
	40mm*5mm
ASTM A1011	50mm*5mm	8mm	32mm
	60mm*5mm
	60mm*8mm		34mm
ss400	75mm*5mm
	75mm*8mm		40mm
