HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar

Place of Origin:China

Brand Name:GNEE

Certification:SGS

Minimum Order Quantity:10 square meter

Price:Negotiable

Payment Terms:Negotiable

Supply Ability:100 ton/week

Product Details

Highlight:

SS serrated steel grating

25x5 mm bearing bar grating

HDG steel grating with warranty

Product Description

HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar

Introducing our innovative steel grating product, featuring a robust serrated bearing bar, crafted with precision for superior performance. Thanks to its smart and efficient structural design, this remarkable grating is the go-to choice for applications demanding high load-bearing prowess or aesthetic appeal. Produced from a specified size of serrated steel, this grating undergoes a series of meticulous processes-slotting, inserting, welding, and finishing-culminating in a product capable of handling substantial loads. It stands as a trusted solution for heavy-duty industrial platforms, offering a significant safety margin. Surface treatments are versatile, including galvanizing, painting, or dipping, tailored to your needs.

HDG Grating Factory Ss Steel Serrated Grating with 25X4.5 25X5 mm Bearing Bar

Specification

Product Name	Customized Anti-slip Serrated Steel Grating
Material	Mild Steel(Low Carbon Steel),S235,S275JR,A36,or Stainless Steel SS304,SS316 etc.
Surface treatment	Hot dipped galvanized, polished or untreated
Grate size	as customer's request
Bearing bar width x thickness	25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,...75x10mm
Bearing bar pitch	12.5,15,20,23.85,25,30,30.16,30.3,34.3,35,40,41,60mm. US standard:1"x3/16",11/4"x3/16",11/2"x3/16",1"x 1/4", 11/4"×1/4",11/2"x 1/4"etc.
Cross bar pitch	38,50,76,100,101.6mm or custom

Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(widthxthickness)
30	100	G203/30/100 \| G253/30/100 \| G323/30/100 \| G403/30/100 \| G205/30/100 \| G255/30/100
30	50	G203/30/50 \| G253/30/50 \| G323/30/50 \| G403/30/50 \| G205/30/50 \| G255/30/50
40	100	G203/40/100 \| G253/40/100 \| G323/40/100 \| G403/40/100 \| G205/40/100 \| G255/40/100
40	50	G203/40/50 \| G253/40/50 \| G323/40/50 \| G403/40/50 \| G205/40/50 \| G255/40/50
60	50	G253/60/50 \| G253/60/50 \| G403/60/50 \| G205/60/50 \| G255/60/50

Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(widthxthickness)
30	100	G325/30/100 \| G405/30/100 \| G455/30/100 \| G505/30/100 \| G555/30/100 \| G605/30/100
30	50	G325/30/50 \| G405/30/50 \| G455/30/50 \| G505/30/50 \| G555/30/50 \| G605/30/50
40	100	G325/40/100 \| G405/40/100 \| G455/40/100 \| G505/40/100 \| G555/40/100 \| G605/40/100
40	50	G325/40/50 \| G405/40/50 \| G455/40/50 \| G505/40/50 \| G555/40/50 \| G605/40/50
60	50	G325/60/50 \| G405/60/50 \| G455/60/50 \| G505/60/50 \| G555/60/50 \| G605/60/50

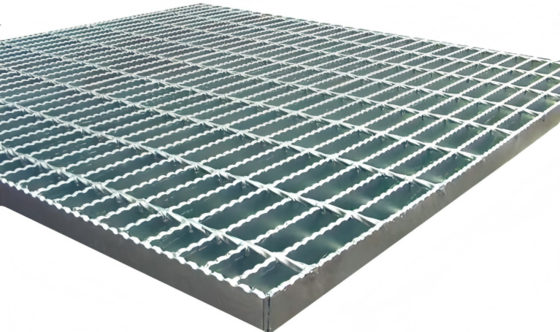

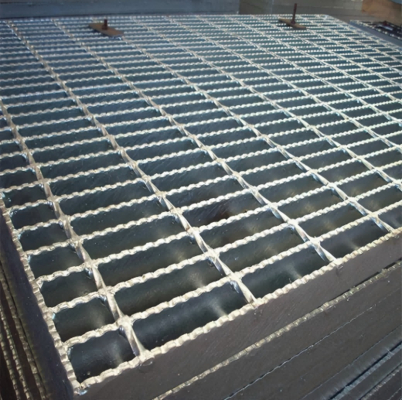

Close-up view of HDG Grating Factory Ss Steel Serrated Grating

Product Summary

HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar Introducing our innovative steel grating product, featuring a robust serrated bearing bar, crafted with precision for superior performance. Thanks to its smart and efficient structural design, this remarkable grating is ...

Send Inquiry
