Hot DIP Galvanized Catwalk Serrated Grating Metal Walkways Stainless Steel Weld Bar Platform Steel Grating
Basic Properties
Place of Origin:
China
Brand Name:
GNEE
Certification:
SGS
Trading Properties
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Payment Terms:
Negotiable
Supply Ability:
100 ton/week
Product Summary
Hot DIP Galvanized Catwalk Serrated Grating Metal Walkways Stainless Steel Weld Bar Platform Steel Grating Galvanized steel grating is an ideal product for wet, slippery situation where corrosion resistance is vital. The mild steel gratings are hot dipped galvanized in the galvanizing bath. The ...
Product Details
Highlight:
hot dip galvanized steel grating
,serrated metal walkway grating
,stainless steel weld bar platform
Product Description

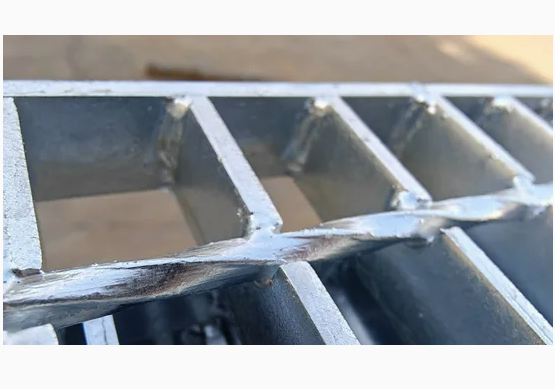

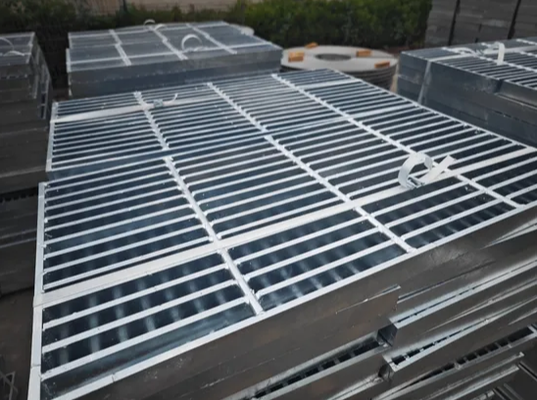

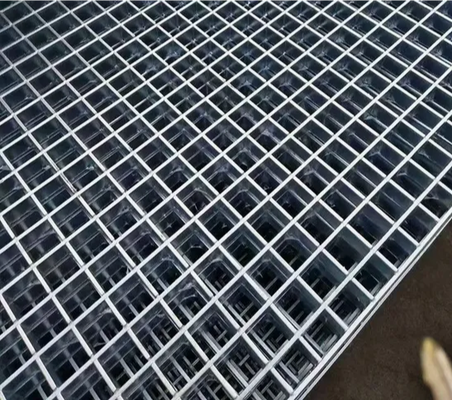

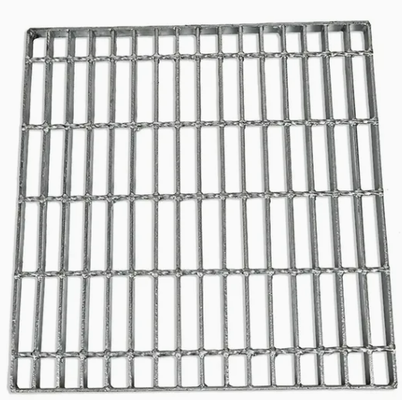

Hot DIP Galvanized Catwalk Serrated Grating Metal Walkways Stainless Steel Weld Bar Platform Steel Grating
Galvanized steel grating is an ideal product for wet, slippery situation where corrosion resistance is vital. The mild steel gratings are hot dipped galvanized in the galvanizing bath. The galvanizing bath has got 7 tank surface cleaning process, the purity of the zinc used for hot dipped galvanizing shall be 99.95 % pure. The galvanized coating shall be as per IS-3202/IS-4759 / IS-2629/IS - 2633/IS-6745,ASTM -A -123 or equivalent to international standards.
Specification
| Bearing bar | 25mmx3mm | 30mmx3mm | 35mmx5mm | 40mmx5mm | 50mmx6mm | Custom-made |
|---|---|---|---|---|---|---|
| Bearing bar pitch | 30mm | 35mm | 38mm | 40mm | 50mm | Custom-made |
| Cross bar pitch | 33mm | 54mm | 64mm | 100mm | 150mm | Custom-made |
| Width | 914mm | 1000mm | 2000mm | Custom-made | ||
| Length | 1000mm | 2000mm | 3000mm | 5800mm | 6000mm | Custom-made |
Product Applications
- Anti slip bridge decking
- Bridge walkway
- Drainage systems
- Fire truck platforms
- Mass transit platforms
- Marine and ship decks
- Mezzanines
- Non-slip walkways
- Non-skid pit covers
- Slip resistant platforms
- General Industries
- Truck platforms
- Vault covers
- Wet Decks
- Wastewater treatment plant grating
Special specifications can be produced by the customer's requirements.
Features
- Can be purchased in stock sizes or custom fabricated to meet the project specifications.
- Excellent load bearing capabilities
- Ventilation of air, light, sound
- Don't collect Liquid and debris
- Long service life
- Wide range of open areas
- Galvanized steel grating has an unmatched surface. It is also a permanent replacement for slippery serrated and plain grating.
- It's available in many different styles and spacing options to meet a variety of needs and applications.
- Anti-theft design: the cover and the frame is joint with hinge offering security, safety and open convenience.
- High strength: the strength and the toughness are much higher than cast iron. It can be used for terminals, airport, other large-span and heavy loading condition.
