Welded Steel Bar Grating Metal Serrated Drainage Toothed Steel Grating HDG Steel Serrated Floor Gratings
Basic Properties
Place of Origin:
China
Brand Name:
GNEE
Certification:
SGS
Trading Properties
Minimum Order Quantity:
10 square meter
Price:
Negotiable
Payment Terms:
Negotiable
Supply Ability:
100 ton/week
Product Summary
Welded Steel Bar Grating Metal Serrated Drainage Toothed Steel Grating HDG Steel Serrated Floor Gratings Steel bar grating, known for its high strength and robust structure, is manufactured from carbon steel, aluminum, or stainless steel. Depending on the production method, steel grating can be ...
Product Details
Highlight:
welded steel bar grating
,serrated steel drainage grating
,HDG steel serrated floor gratings
Product Description

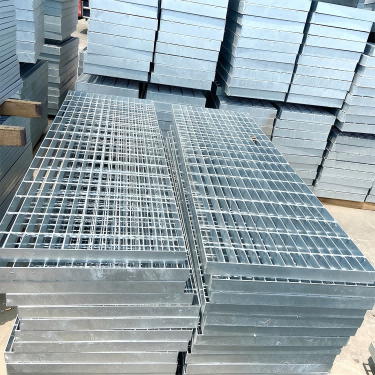

Welded Steel Bar Grating Metal Serrated Drainage Toothed Steel Grating HDG Steel Serrated Floor Gratings
Steel bar grating, known for its high strength and robust structure, is manufactured from carbon steel, aluminum, or stainless steel. Depending on the production method, steel grating can be categorized into four types: welded bar grating, press-locked grating, swage-locked grating, and riveted grating. Based on surface design, it is available in both smooth and serrated options.
With a wide range of styles and sizes, steel grating serves versatile applications in everyday life, including stair treads, walkways, platforms, flooring, trench covers, wheeled equipment, security screens, and heavy-duty constructions.
Types of Steel Grating
- Welded bar grating
- Press Lock Grating
- Swage Locked Grating
Welded Bar Grating
Welded bar grating is also called metal open bar grating. Welded bar grating, also known as metal open bar grating, comes in two types: smooth and serrated. Smooth, or plain steel bar grating, is more popular, but serrated grating offers better skid resistance.
Made from low carbon steel, stainless steel, or aluminum, is created by bonding slotted bars under hydraulic pressure. It's strong, durable, and widely used in industrial and commercial applications like stair treads, platforms, walkways, and covers. Serrated surfaces enhance anti-slip properties.
Swage Locked Grating
Swage locked grating, mainly made of aluminum or stainless steel bars, is formed by inserting cross bars into pre-punched bearing bars and locking them under hydraulic pressure. It comes in three bearing bar types: rectangular, T, and I bars, with I bars being lighter and more affordable.
Product Specifications
| Material | Carbon Steel, Stainless Steel, Aluminum |
|---|---|
| Surface treatment | Hot dipped galvanized, Spray painting, Polished and powder coated |
| Bearing bar type | Plain(Flat) bar, Serrated bar, I-bar, etc. |
Common Specifications
| Bearing bar pitch (mm) | Cross bar pitch (mm) | Bearing bar size |
|---|---|---|
| 30 | 100 | WSG_203/253/323/403/205/325/405/455/505/555_30_100 |
| 30 | 50 | WSG_203/253/323/403/205/325/405/455/505/555_30_50 |
| 40 | 100 | WSG_203/253/323/403/205/325/405/455/505/555_40_100 |
| 40 | 50 | WSG_203/253/323/403/205/325/405/455/505/555_40_50 |
| 60 | 50 | WSG_203/253/323/403/205/325/405/455/505/555_60_50 |
If you have any questions regarding the dimensions or specific specifications, please feel free to contact us immediately.
