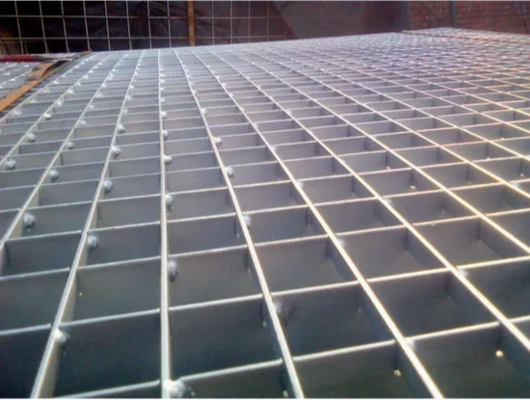

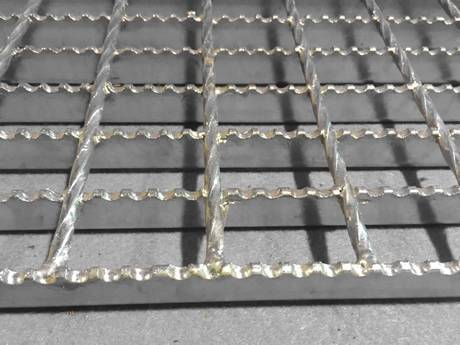

Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating

Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating
Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating

Large Image :  Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating

Product Details:
Place of Origin: China
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: 10 square meter
Price: Negotiable
Packaging Details: Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Delivery Time: 5-9 working days
Payment Terms: Negotiable
Supply Ability: 100 ton/week
Contact Now

Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating

Description
Highlight:

galvanized steel trench cover

,

welded anti-slip floor grating

,

heavy duty steel bar grating

Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating

Press-locked steel bar grating made by fixed size flat steel through slotted, pressure lock plug, finish, etc process. At the intersection point of flat steel and horizontal pole, press horizontal pole into loading flat steel, then fixed it. Sometimes the horizontal pole also used flat steel.

The grating is widely used for floor, catwalk, Mezzanines/decking, stair tread, fencing; vault bin floor floor, ramp, dock/warehouse, all kinds of trench cover, window and machinery safe guards, wash rack, ventilation screen, storage rack, suspended ceiling, drainage pit cover and etc.

Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating 0
Product Specifications
Material 1. Carbon Steel Q235
2. Stainless Steel 304 / 316
Type Press locked / Flat bar / Serrated bar / I Bar
Bearing Bar Size 20 x 3 to 100 x 9; the specification of "I-section" is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc
Bearing Bar Pitch 12.5 to 100 mm etc, 30, 40, 60mm are recommended, America standard is available
Cross Bar Pitch from 18.5 to 101.6mm etc, 50, 100mm are recommended, America standard is available
Specification Size of bearing flat steel: 25x3mm / the center space: 30mm, 40mm, 50mm, 100mm
Size of horizontal pole: 10x2mm / the center space: 50mm, 100mm
Surface Treatment Untreated / Painting / Hot Dip Galvanizing
Steel Standard China GB700-88 / America ASTM (A36) / Britain ASTM (A36)
HDG Standard China GB/T13912-92 / America ASTM (A123) / Britain BS729
Quality Standard China YB/T4001-1998 America ANSI/NAAMM (MBG531-88)
Britain BS4592-1987 Australia AS1657-1992
Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating 1
Bearing Bar Pitch Specifications
No. Bearing Bar Pitch (mm) Standard Panel Width (Bearing Bar Thickness 5mm) Bearing Bar Number (PC) Remark
112.5100581Pitch between the two sides are smaller than normal bearing bar pitch.
215101068
320101051
42299546
523.85100743
625100541
73099534
830.16100034
930.3100534
1032.5101332
1134.3100030
1235102030
1335.3102930
1440100526
1541103026
1641.499925
1750100521
186096517
196299717
Our Advantages
  • Expert Manufacturing
  • Robust Export Experience
  • Customization Capability
  • Competitive Pricing
  • Stringent QC & Certificate
  • Responsive Service
Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating 2
