Cutting Aluminum/Galvanized Steel/Stainless Steel/Perforated Metal Mesh Panel for Architectural Decoration

Cutting Aluminum/Galvanized Steel/Stainless Steel/Perforated Metal Mesh Panel for Architectural Decoration
Cutting Aluminum/Galvanized Steel/Stainless Steel/Perforated Metal Mesh Panel for Architectural Decoration Cutting Aluminum/Galvanized Steel/Stainless Steel/Perforated Metal Mesh Panel for Architectural Decoration Cutting Aluminum/Galvanized Steel/Stainless Steel/Perforated Metal Mesh Panel for Architectural Decoration

Large Image :  Cutting Aluminum/Galvanized Steel/Stainless Steel/Perforated Metal Mesh Panel for Architectural Decoration

Product Details:
Place of Origin: China
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Delivery Time: 5-9 working days
Payment Terms: Negotiable
Supply Ability: 100 ton/week
Contact Now

Cutting Aluminum/Galvanized Steel/Stainless Steel/Perforated Metal Mesh Panel for Architectural Decoration

Description
Highlight:

perforated metal mesh panel

,

aluminum perforated metal screen

,

stainless steel architectural mesh

Cutting Aluminum/Galvanized Steel/Stainless Steel/Perforated Metal Mesh Panel for Architectural Decoration

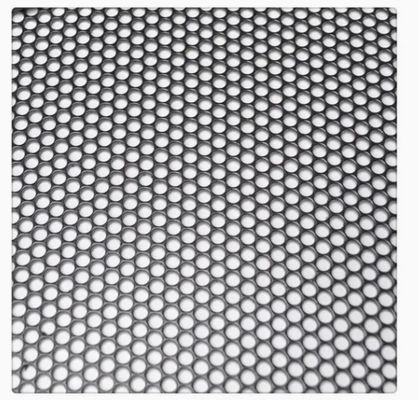

Decorative Perforated Plate is made of stainless steel sheet, aluminum steel sheet and carbon steel sheet, perforated on the digital control machines and then electroplating, baking vanish or spraying treatment. The different materials have different features, which can fit different demands of the customers.

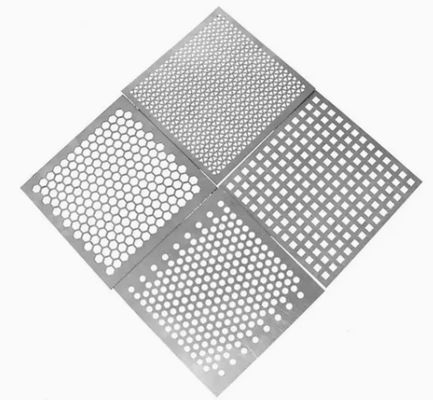

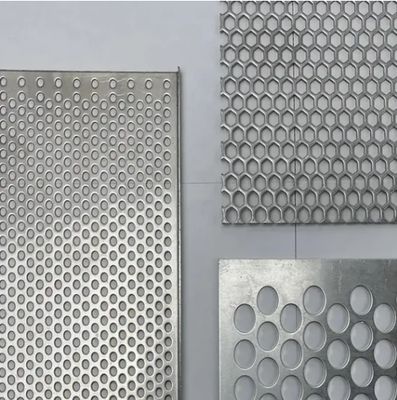

Decorative Perforated Plate has various hole types, such as the round, rectangular, triangle, diamond, hexagonal, cross, slotted. Other hole types according to your drawings or requirements are available.
Decorative Perforated Plate doesn't have accurate specifications, it can be designed specially for the customers to meet different requirements and preferences.
Cutting Aluminum/Galvanized Steel/Stainless Steel/Perforated Metal Mesh Panel for Architectural Decoration 0
Technical Information
Material Carbon Steel Plates, Stainless Steel Plates, Aluminum Alloy Plates, Pre-Galvanized Steel Plate, Copper & brass
Thickness 1mm-6mm or can be customized
Width The initial sheet is generally 1.5m or 2m. When a certain quantity is reached, a wider sheet can be customized according to requirements.
Length Can be customized.
Holes Patterns No limit, customized upon request.
Surface treatment 1. PVDF (Fluorocarbon) Coating, expensive price
2. Powder Coating: Can do various colors. The powders use KCC, PPG, AKZO NOBEL, BECKER and other your pointed brand, most common used.
3. Anodizing: Basic color processing, most common used
4. The steel material can also be galvanized, polished or made of Mirror 304, Mirror 316 material.
Production machine options
Type Ordinary CNC Punch Machine CNC Gantry Punch Machine CNC Turret Punch Machine Laser Cutting CNC Bending
Thickness 0.5-6mm 0.5-2mm 0.5-3mm
Aluminum up to 4mm		 1-6mm 1-6mm
Width ≤2m ≤1.5m ≤1.5m ≤2m or customizable ≤2m or customizable
Length ≤4m No limited ≤5m No limited Recommended by width
Application Scenario
  • Building and architectural decoration. It is used for exterior walls, ceilings, and partition walls as decorative materials to provide visual effects and air circulation.
  • Filtration and screening. It is used in the industrial field as screening and filtering materials, such as screening ores in mining, and screening raw food materials in food processing.
  • Acoustic control. It is used for acoustic insulation panels or sound-absorbing panels, which can be used to control noise and improve the acoustic environment.
  • Cooling and ventilation. It is used for air conditioning equipment, ventilation systems, and radiators, providing air circulation and cooling effects.
  • Safety protection. It is used to make safety railings, protective covers, etc., providing safety protection functions.
Cutting Aluminum/Galvanized Steel/Stainless Steel/Perforated Metal Mesh Panel for Architectural Decoration 1 Cutting Aluminum/Galvanized Steel/Stainless Steel/Perforated Metal Mesh Panel for Architectural Decoration 2

Tag:

perforated galvanised sheet,

perforated steel mesh,

perforated stainless steel plate
