304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh

Customer Reviews
My grate came today and it fit perfectly. Thank you. Let me know if there is anywhere that I can leave positive feedback about your company!

—— Andrew Mullen

I'm Online Chat Now

304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh

304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh
304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh 304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh 304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh

Large Image :  304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh

Product Details:
Place of Origin: China
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Delivery Time: 5-9 working days
Payment Terms: Negotiable
Supply Ability: 100 ton/week

304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh

Description
Highlight:

304 stainless steel perforated mesh sheet

,

316 stainless steel punching metal mesh

,

round hole perforated metal mesh sheet

304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh
Perforated Metal Sheet is one of the most versatile and stylish metal products in our life, featuring various hole sizes, high strength-to-weight ratio, good ventilation and light penetration. It is a metal plate with various shapes of holes on the surface. Product applications are widely used in various industries including pharmaceutical equipment, food and beverage machinery, harvesting machines, dry cleaning machines, sound elimination equipment, refrigeration equipment (central air conditioning), speakers, and filtering equipment.

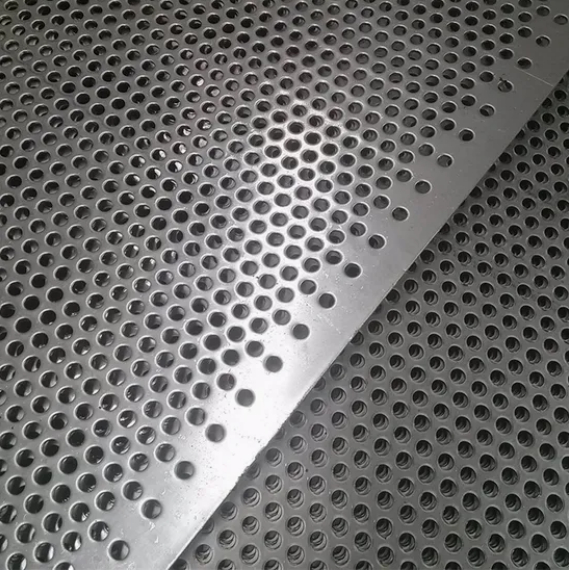

304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh 0
Standard Specifications
Hole Diameter Staggered Centers Sheet Thickness Open Area
0.045" | 1.14mm 0.066" 0.033-0.039" | 0.84-0.99mm 0.37
1/16" | 1.59mm 3/32" 0.027-0.033" | 0.68-0.84mm 0.41
1/16" | 1.59mm 1/8" 0.027-0.066" | 0.68-1.69mm 0.23
5/64" | 1.98mm 1/8" 0.027-0.053" | 0.68-1.35mm 0.35
0.081" | 2.06mm 1/8" 0.053-0.066" | 1.35-1.68mm 0.38
3/32" | 2.38mm 5/32" 0.053-0.066" | 1.35-1.68mm 0.33
1/8" | 3.17mm 3/16" 0.027-0.127" | 0.68-3.23mm 0.4
5/32" | 3.97mm 3/16" 0.027-0.066" | 0.68-1.68mm 0.63
3/16" | 4.76mm ¼" 0.027-0.127" | 0.68-3.23mm 0.5
1/4" | 6.35mm 3/8" 0.033-0.111",0.25" | 0.84-2.82mm,6.35mm 0.4
3/8" | 9.52mm ½" 0.053-0.082",3/16" | 1.35-2.08mm,4.76mm 0.51
3/8" | 9.52mm 9/16" 0.059",0.119" | 1.50mm,3.02mm 0.4
1/2" | 12.70mm 11/16" 0.033-0.127",3/16" | 0.84-3.23mm,4.76mm 0.48
1/4" Hex | 6.35mm Hex 0.285 0.027-0.033 | 0.68-0.84mm 0.76
3/8" Sq. | 9.52mm Sq. Cane 0.053-0.066" | 1.35-1.68mm 0.51

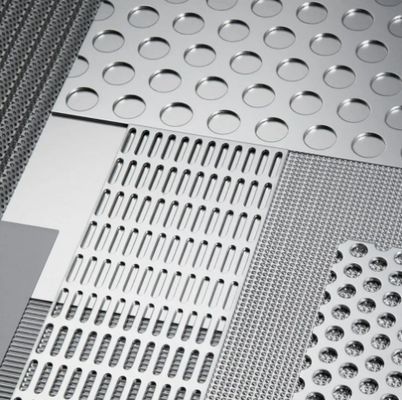

304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh 1
Product Specifications
Product Name Perforated Metal Mesh
Material Stainless Steel, Low carbon Steel, Aluminum, Galvanized Steel, Copper, Brass, etc
Hole Patterns Straight rows, staggered and arbitrary patterns
Thickness 0.5-10mm
Hole Shapes Round, rectangular, square, hexagonal, diamond, triangular, irregular hole
Size Sheets: 1m×2m, 1.2m×2.4m, 1.22m×2.44m etc (other sizes can be customized)
Rolls: 1m×20m, 1.2m×20m, 1.5m×20m etc (other sizes can be customized)
Margin Types With or without margins

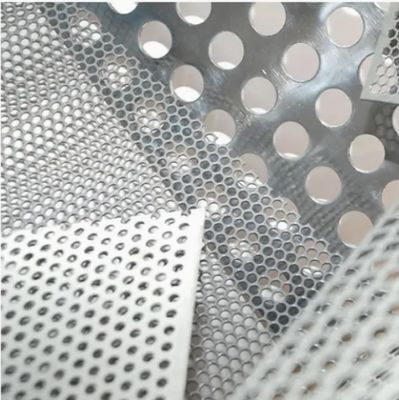

304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh 2
