G325/60/50, G323/40/100 Galvanized Welded Metal Steel Grating for Steel Structure Walkway

Place of Origin:China

Brand Name:GNEE

Certification:SGS

Price:Negotiable

Payment Terms:Negotiable

Supply Ability:100 ton/week

Product Details

Highlight:

galvanized welded steel grating

serrated steel grating walkway

steel structure metal grating

Product Description

G325/60/50, G323/40/100 Galvanized Welded Metal Steel Grating for Steel Structure Walkway

Galvanized Welded Metal Steel Grating, also known as bar grating or metal grating, is an open grid assembly of metal bars, in which the bearing bars, running in one direction, are spaced by rigid attachment to cross bars running perpendicular to them or by bent connecting bars extending between them, which is designed to hold heavy loads with minimal weight. It is widely used as floors, mezzanines, stair treads, fencing, trench covers and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.

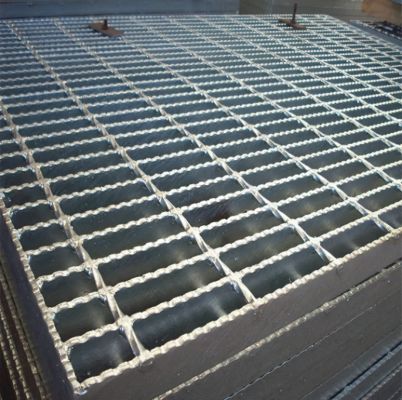

Galvanized Welded Metal Steel Grating product photo

Product Specifications

Product Name	Steel Bar Grating
Material	Mild Steel (Low Carbon Steel), S235, S275JR, A36, or Stainless Steel SS304, SS316 etc, Aluminum 3003, 5052
Surface treatment	Hot dipped galvanized, polished or untreated
Bearing bar (width x thickness)	25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, 75x10mm
Bearing bar pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm. US standard: 1"x3/16", 11/4"x3/16", 11/2"x3/16", 1"x 1/4", 11/4"×1/4", 11/2"x 1/4" etc.
Cross bar pitch	38, 50, 76, 100, 101.6mm or customized

Standard Specifications

Pitch of Bearing bar	Cross-bar Pitch	20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50

Pitch of Bearing bar	Cross-bar Pitch	32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Applications

Working Platform, Handrail Infill, Walkway, Bridge decking, Stair Treads, Transformer Reservoir, Trench Cover, Ceiling, Grating Fence, Sunshade Panels

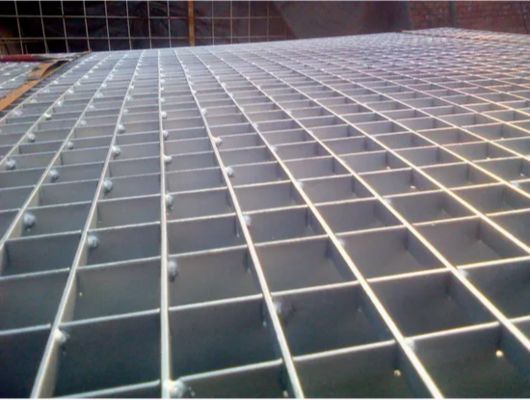

Galvanized Welded Metal Steel Grating installation example

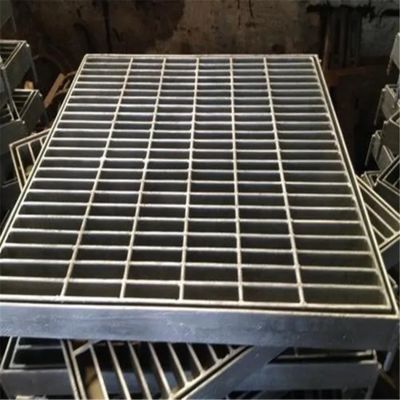

Close-up view of Galvanized Welded Metal Steel Grating

Product Summary

G325/60/50, G323/40/100 Galvanized Welded Metal Steel Grating for Steel Structure Walkway Galvanized Welded Metal Steel Grating, also known as bar grating or metal grating, is an open grid assembly of metal bars, in which the bearing bars, running in one direction, are spaced by rigid attachment to ...
